PCH 1200W Compact 1200V 1A Programmable High Voltage Power Supply 1000V 1500V 2000V 3000V

  • Programmable High Voltage DC Power Supply 1200W
  • Output ratings 1000V 1.2A, 1200V 1A, 1500V 0.8A, 2000V 0.6A, 3000V 0.4A
  • Option for negative polarity -1000V, -1200V, -1500V, -2000V, -3000V
  • Low ripple 0.1%FS
  • Compact design, 2U half width cabinet
  • List mode function, Auto Run function
  • No overshoot during startup
  • Soft start by hardware, and adjustable voltage rise time by software
  • Remote ON/OFF control
  • Preset function, setting of voltage and current with output open circuit
  • Multiple protections: OVP, OTP, ACF and current limit protections
  • Standard interface: RS232 & RS485, support ModBus-RTU commands
  • Data record and export through PC control software
  • Hot keys for data save and recall on PC control software
  • Same output ratings available with 2U full size rack mount cabinet
Get a Quote
Download PDF

Details

Twintex PCH1200-S series are 1200W programmable high voltage power supplies rating at DC 1000V 1.2A, 1200V 1A, 1500V 0.8A, 2000V 0.6A, 3000V 0.4A. The programmable high voltage power supply provides positive polarity by default. There is option of negative polarity.

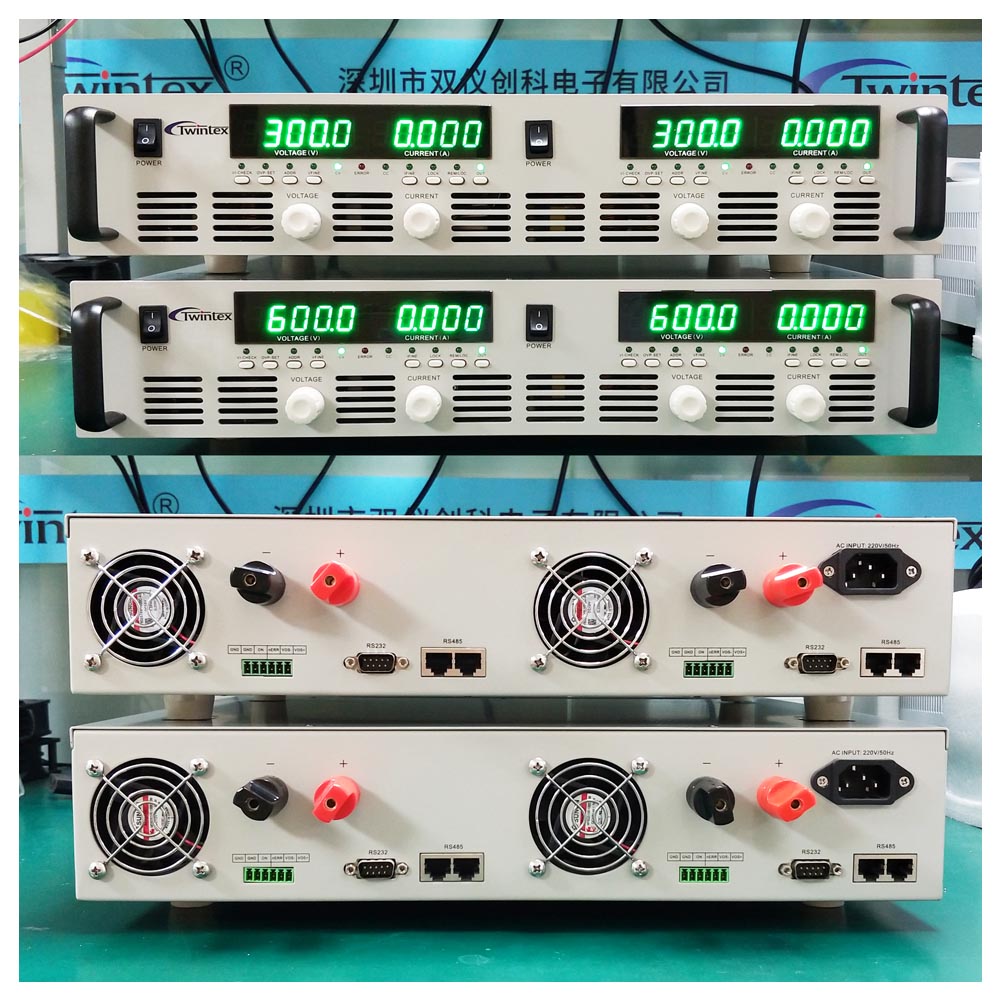

The programmable high voltage power supply is designed for both bench top applications and rack systems. Two power supplies can be built into a 2U full rack as shown in photos on the right, making total power 2400W from a single rack. Each power supply is independent in AC input, DC output and remote control.

For higher voltage at 1200W power level in the same product family, please refer to PCH1200 series (1kV to 12kV) and PHV1200 series (15kV to 40kV), built in a 2U full rack.

Programmable High Voltage DC Power Supply 600W 1200W



Model

 Rated Output   Model Rated Output
V A W V A W
PCH600-10HS 0~1000V 0~600mA 600W PCH1200-10HS 0~1000V 0~1200mA 1200W
PCH600-10HSN -200~-1000V 0~600mA 600W PCH1200-10HNS -200~-1000V 0~1200mA 1200W
PCH600-12HS 0~1200V 0~500mA 600W PCH1200-12HS 0~1200V 0~1000mA 1200W
PCH600-12HSN -240~-1200V 0~500mA 600W PCH1200-12HNS -240~-1200V 0~1000mA 1200W
PCH600-15HS 0~1500V 0~400mA 600W PCH1200-15HS 0~1500V 0~800mA 1200W
PCH600-15HSN -300~-1500V 0~400mA 600W PCH1200-15HNS -300~-1500V 0~800mA 1200W
PCH600-20HS 0~2000V 0~300mA 600W PCH1200-20HS 0~2000V 0~600mA 1200W
PCH600-20HSN -400~-2000V 0~300mA 600W PCH1200-20HNS -400~-2000V 0~600mA 1200W
PCH600-30HS 200~3000V 0~200mA 600W PCH1200-30HS 200~3000V 0~400mA 1200W
PCH600-30HSN -600~-3000V 0~200mA 600W PCH1200-30HNS -600~-3000V 0~400mA 1200W
Weight 212.5Wx88Hx340D mm (1/2 2U)
Dimensions Approx 5kg
AC Input 1φ3W, 220V±10% 47~63Hz
