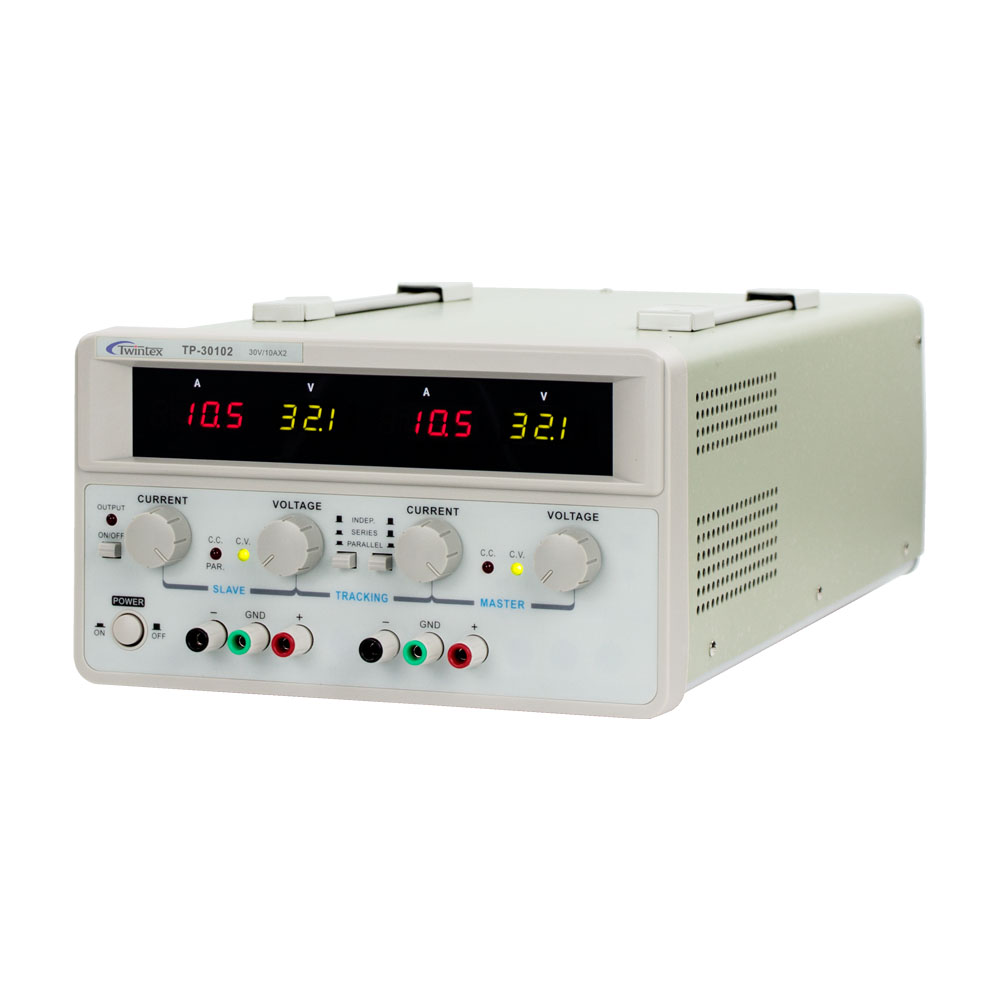

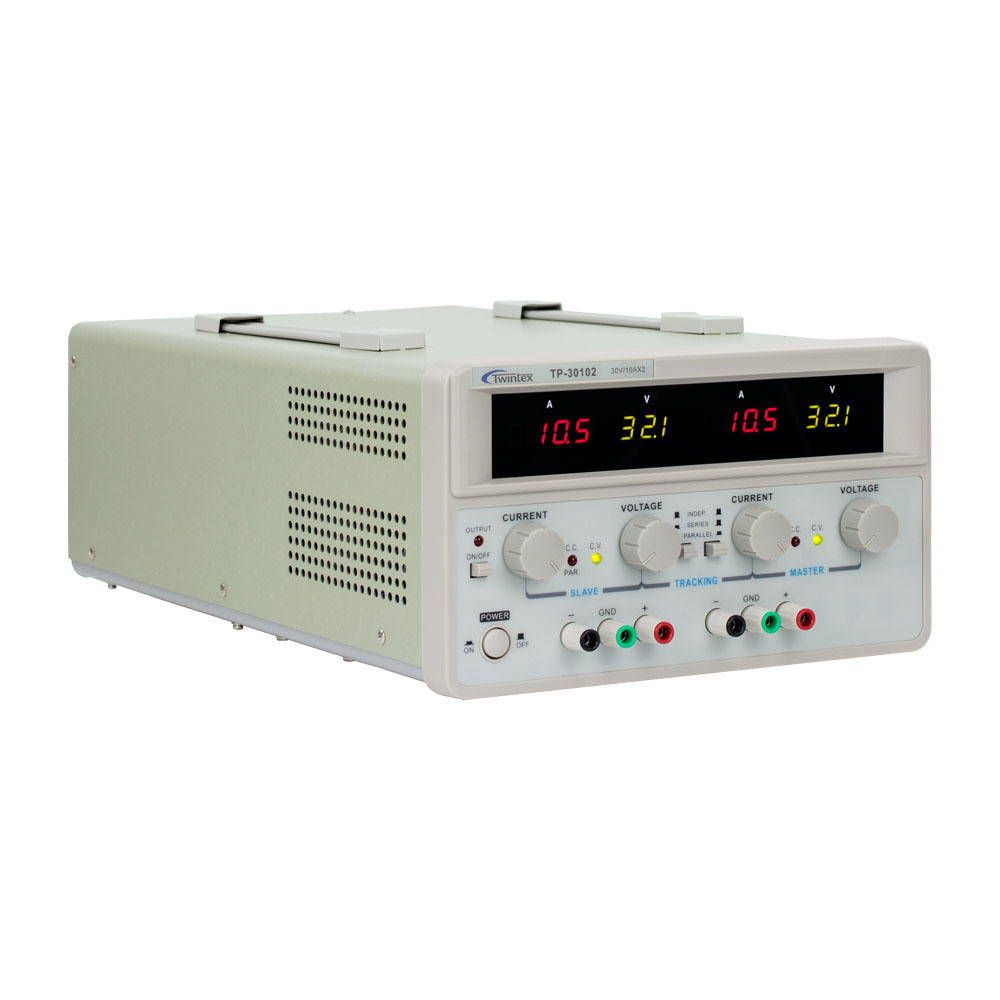

TP-30102 TP-60052 Linear Mode Adjustable Lab Grade 600W 30V 10A 60V 5A Dual Output DC Power Supply
TP-30102 TP-60052 Linear Mode Adjustable Lab Grade 600W 30V 10A 60V 5A Dual Output DC Power Supply
TP-30102 and TP-60052 are lab grade dual output DC power supply, rated output 30V 10A dual and 60V 5A dual. The dual power supply works in series and parallel operations that provides high regulation and low ripple & noise. The dual output DC power supply has preset voltage and current protection that allows users to preset voltage and current without making short circuit connection. In series or parallel operation model, the dual output DC power supply provides double voltage output 60V 10A or double current output 30V 20A.
GET A QUOTE
DATASHEET DOWNLOAD
Twintex_Datasheet_DC_Power_Supply_TP-2xxx_201907_201915.pdfFeatures
- Two independent adjustable outputs 0~30V/0~10A x2 (TP-30102), 0~60V/0~5A x2 (TP-60052)
- Constant voltage and constant current operations, auto CV and CC switch
- Low ripple and noise, low temperature drift
- Auto Series and Parallel tracking operations
- Output ON/OFF control
- Preset function, setting of voltage and current with output open circuit
- High efficiency, high power density
- Over load and reverse polarity protections
- Dual-color four digital panel meters
