The TP-S series switch mode DC power supply is high voltage switching lab power supply available with three different size of cabinets: M size, L size and XL size. In this XL size cabinet, the high voltage high frequency DC regulated power supply is available with high power supply up to 3kW, 4kW, 5kW and 6kW DC power source. The high power switching power supply has maximum voltage from 15V, 30V, 60V, 80V, 100V, 120V, 150V, 200V, 250V, 300V, 400V, 500V, 600V and 800V. The DC power supply high current output is up to 100A, 120A, 150A and 200A. The DC high voltage power supply can be made to custom power supply and OEM power supply.

A switch mode DC power supply delivers variable regulated DC voltage. It adopts pulse-width modulation (PWM) to achieve high output efficiency, low heat dissipation, compact size and light weight. It is much more cost-effective than a linear DC power supply.

Switch mode DC power supplies offer in this page are low-cost DC power supplies, ranging in power of 75W to 6kW.

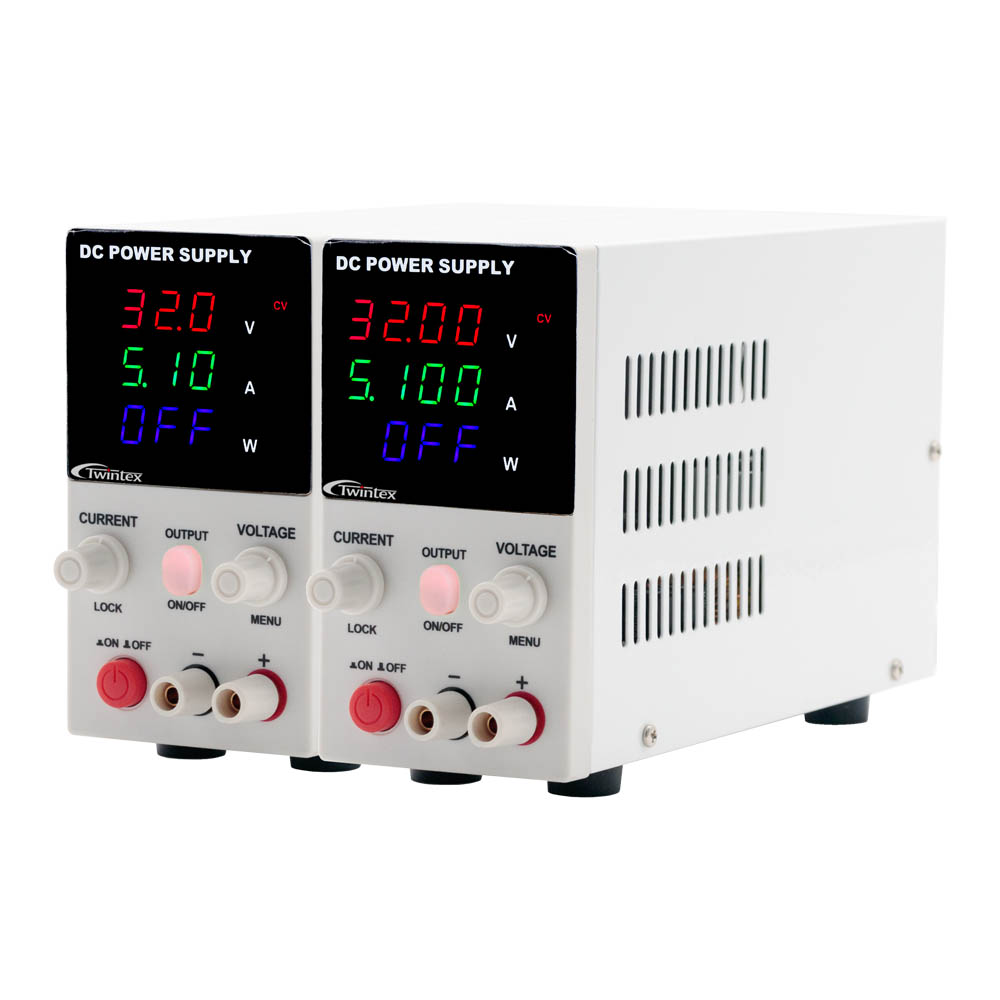

• MINI DC Power Supply DS series are highly cost-effective, suitable for hobbies, DIY electronics and repair work of smartphones.
• SP series regular size DC power supplies cover the very typical voltage/current combinations: 30V 5A, 30V 10A and 60V 5A, suitable for mass use in electronics production and school labs.

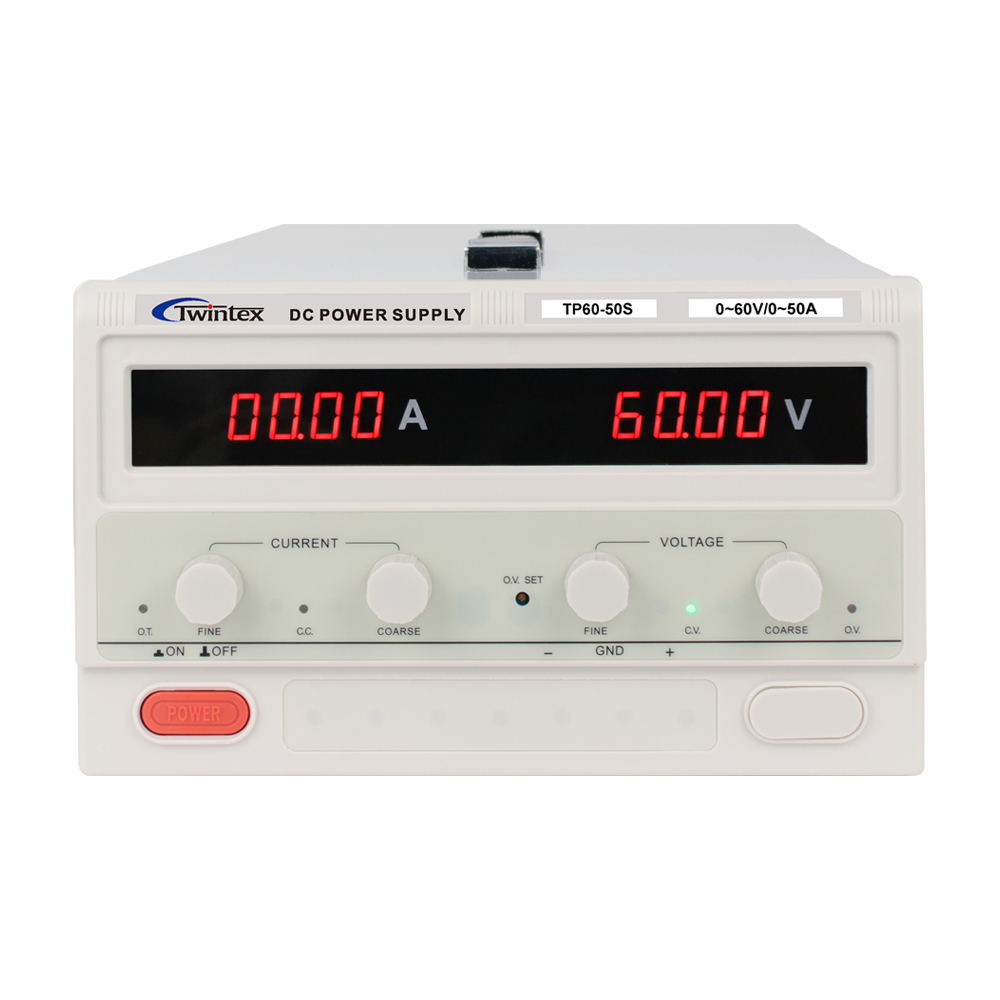

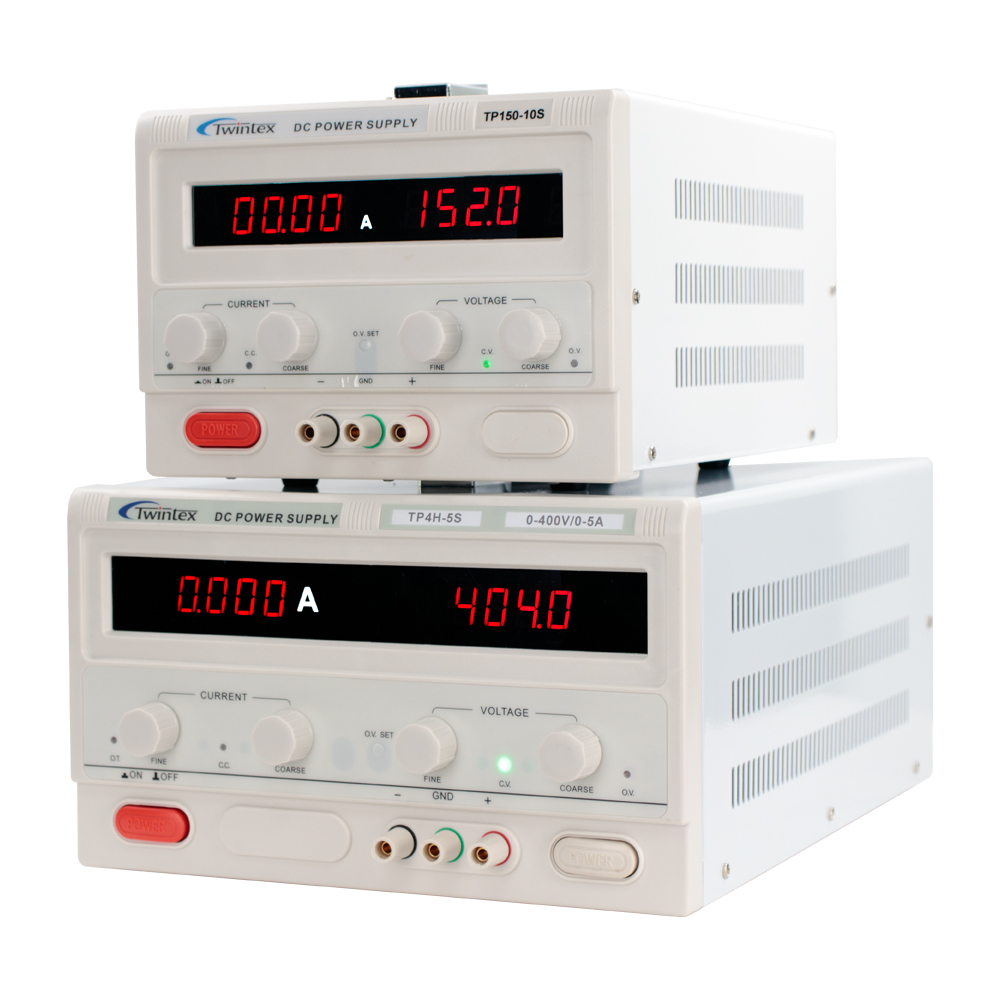

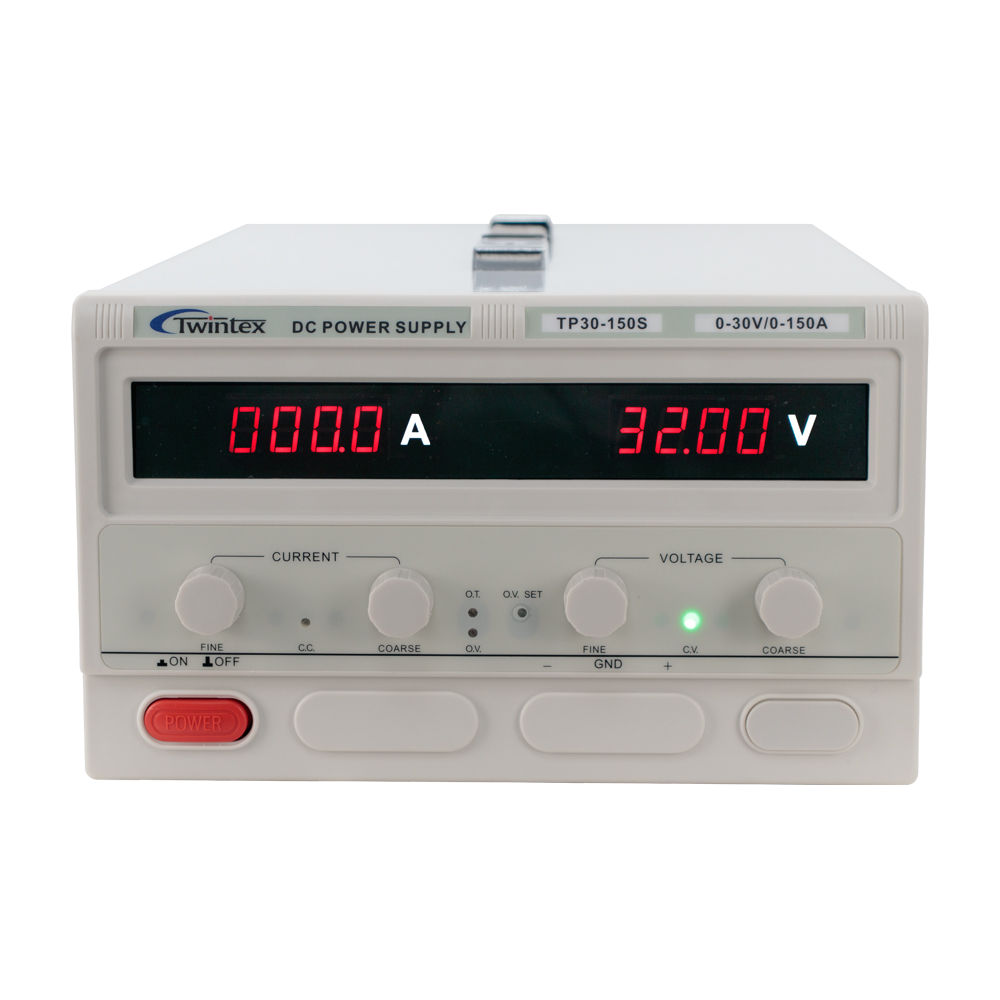

TP-S series high-power DC power supplies covers wider and higher power range from 200W to 6kW. The high current models carries maximum current up to 200A 250A 300A, suitable for electrolysis, electroplating and battery charging. The high voltage models delivers maximum voltage up to 600V 800V 1000V, suitable for capacitor reforming & charging, battery charging, burn-in tests.
