Twintex high-power DC power supply, PCL series, covers a wide range of power levels, from 1.2kW 2.4kW to 10kW, 15kW, 20kW, 30kW…..up to 300kW. Rated voltage ranges from 6V to 2000V, and rated current ranges from 1A to 10kA.

Utilizing ZVZCS PWM technology, PCL series high-power DC power supply provides stable, reliable high-wattage power for both industrial and laboratory applications.

RS232 and RS485 are built at default. LAN interface and analog interface are provided as an option, providing multiple communication choices for both digital control and analog control.

With rack mount design, the PCL series high-power DC power supply can be easily integrated into rack mount ATE system as reliable DC voltage source and DC current source for production and burn-in testing

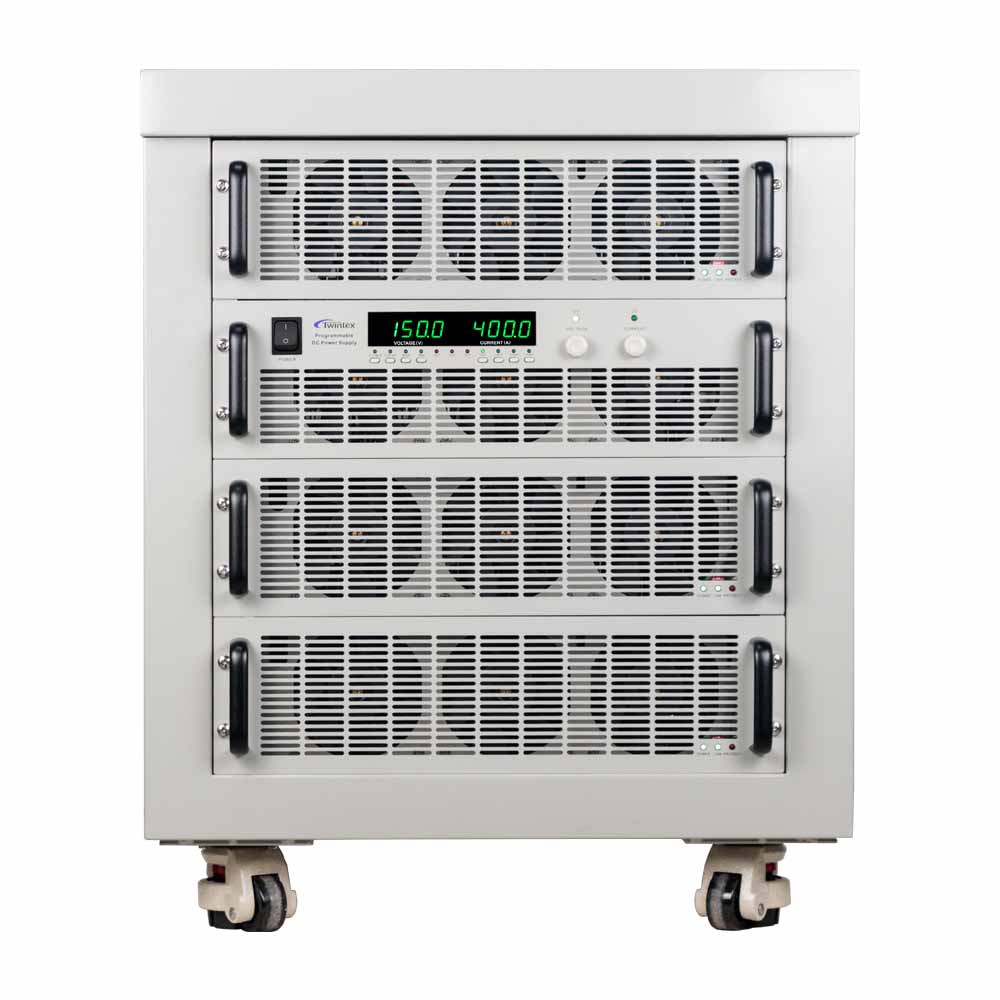

A rough view on PCL series high-power DC power supply:

1.2kW to 5kW, 2U rack

6kW to 15kW, 3U rack

20kW to 30kW, 6U rack

45kW to 60kW, 12U rack

75kW to 90kW, 20U rack

105kW to 150kW, 30U rack

165kW to 195kW, 40U rack
