An AC power source, also known as AC power supply, provides variable power and variable frequency to AC-powered devices. Having adjustable output voltage, frequency and waveform, an AC power sources can simulate different kinds of electrical grids, as well as grid interruption, surges, fault conditions. They are widely used in laboratory testing, R&D and industrial production.

By phase configuration, AC power sources can be divided into two categories: single phase AC power source and three phase AC power source.

• A single phase AC power source uses two-wire connection: one phase wire and one neutral wire (L+N). Single-phase power is normally used for small devices, most typically home appliances and office appliances.
• A three phase AC power source uses three-wire connection: three phase wires (L1+L2+L2). Three-phase power is normally used for high-power equipment and machineries, for example heavy motors, compressors.

In the range of single phase AC power supply, TWINTEX provides three product series:

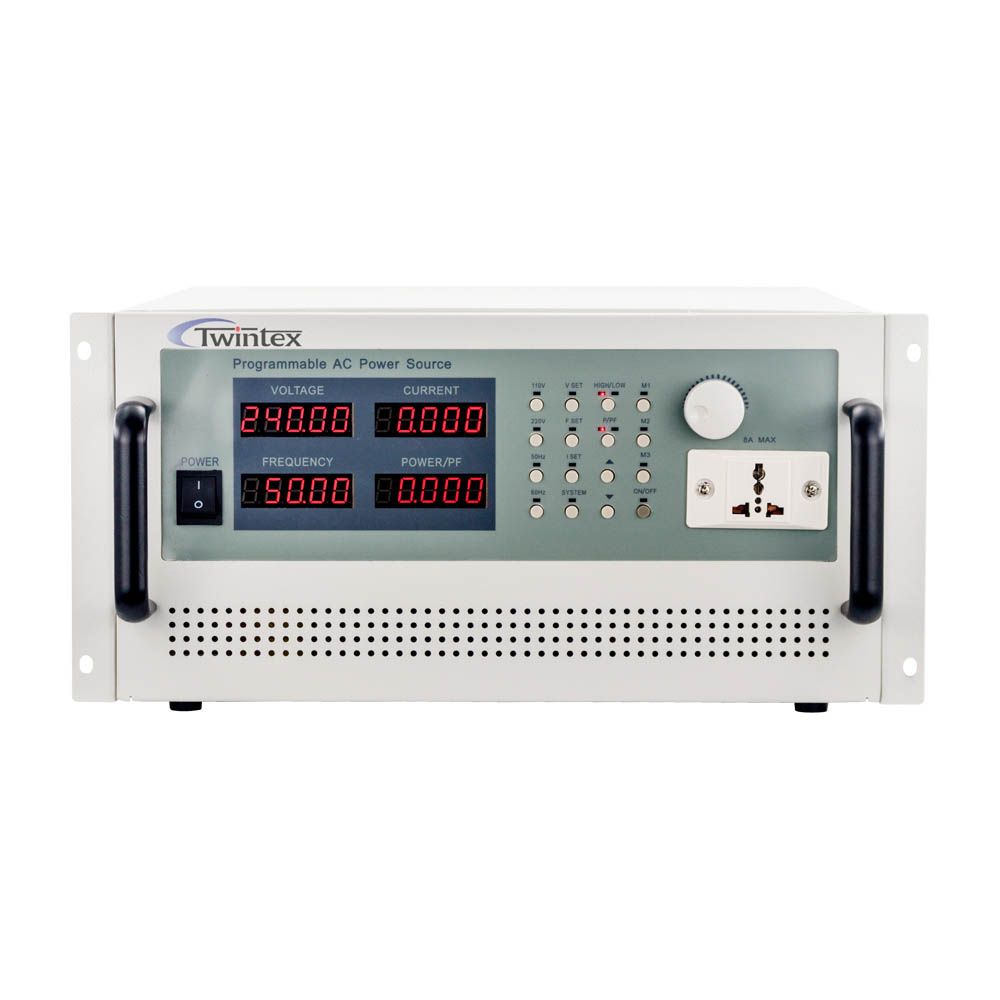

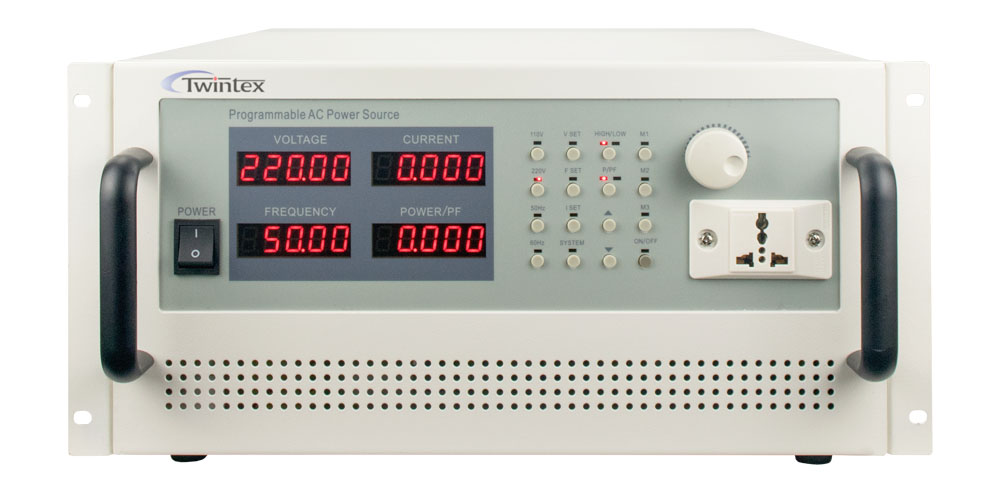

• APS series single phase programmable AC power supply

Capacity from 350VA to 3kVA, frequency 45Hz to 250Hz

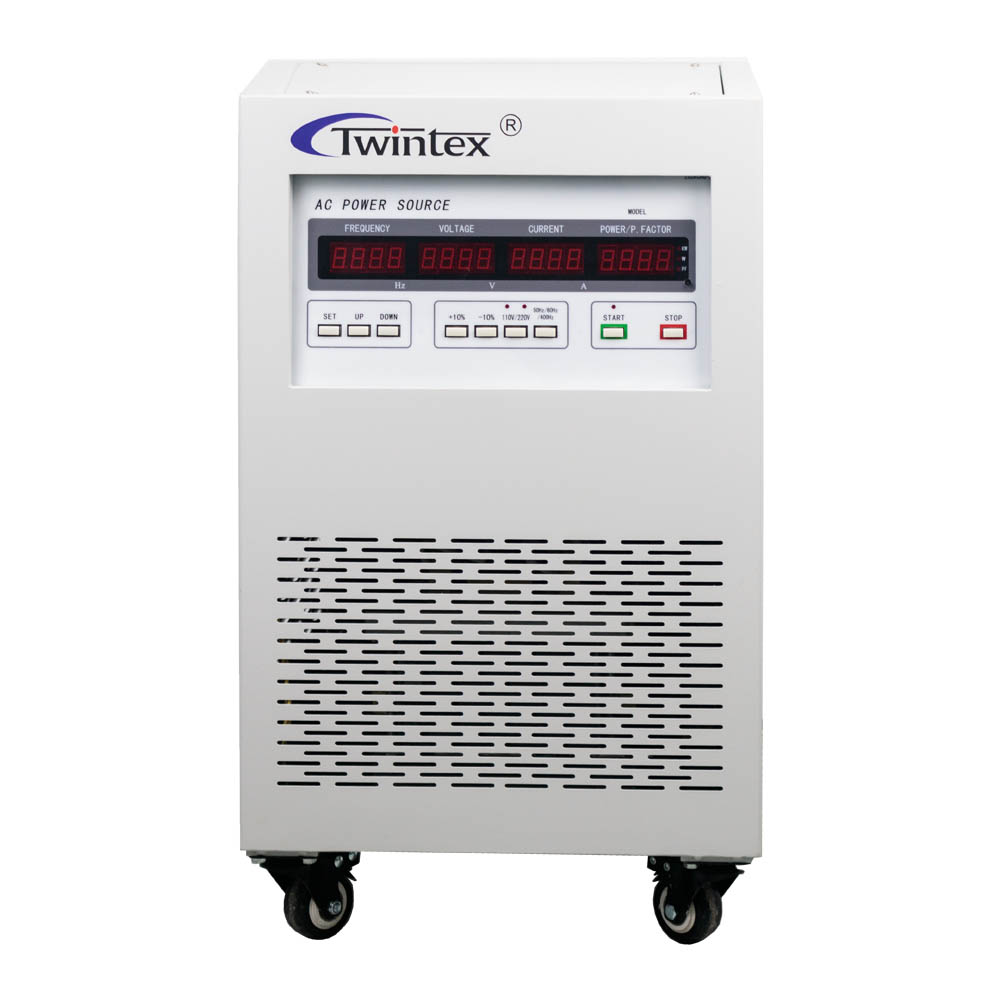

• TFC61 series single phase programmable AC power supply

Capacity from 5kVA to 800kVA, frequency 45Hz to 400Hz

• TFC400-61 series single phase 115V 400Hz programmable AC power supply

Capacity 500VA to 800kVA, frequency 320Hz to 480Hz

In the range of three phase AC power supply, TWINTEX also provides two product series:

• TFC63 series three phase programmable AC power supply

Capacity from 5kVA to 800kVA, frequency 45Hz to 400Hz

• TFC400-63 series three phase 115V 400Hz programmable AC power supply

Capacity 500VA to 800kVA, frequency 320Hz to 480Hz

Customization on voltage range and frequency range can be adapted case by case.
