PCH 1200W 1kV 1.2kV 1.5kV 2kV 3kV Programmable High-voltage DC Power Supply up to 10kV 12kV

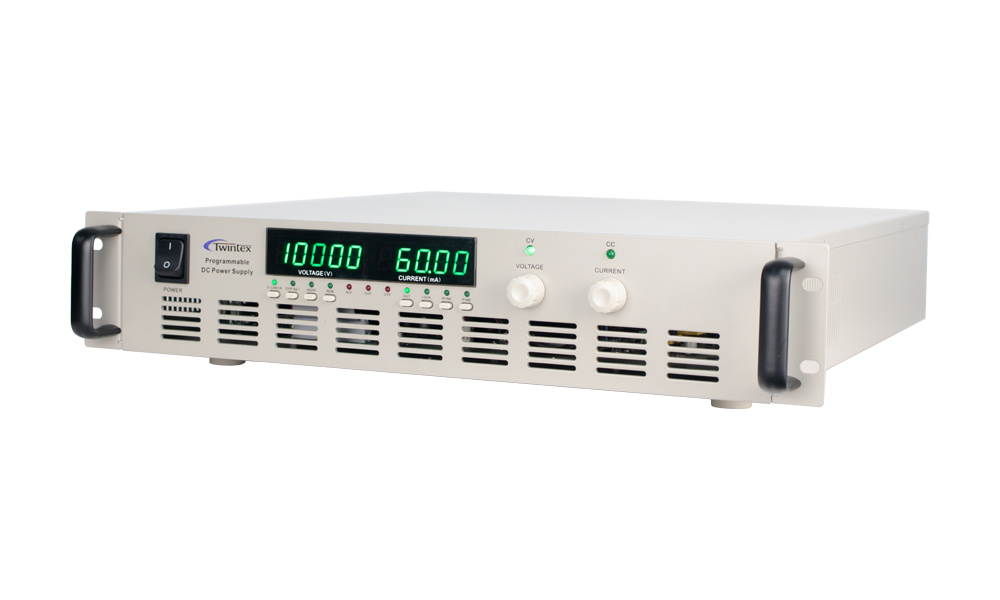

Twintex PCH 1200W series are rack mount programmable high-voltage DC power supplies with low noise (0.1%FS), high stability and high reliability. Built in a 2U full rack frame, the high-voltage DC power supply can be used for both bench top applications and test rack applications. It provides a wide range of voltage levels, from 1kV to 12kV in either positive polarity or negative polarity.

For higher voltage levels, we have PHV series rated from 15kV to 40kV in 1200W power. We also provide compact 1200W high-voltage DC power supply, PCH1200-S series rated from 1000V to 3000V.

The programmable high-voltage DC power supply features low ripple, only 0.1% of full scale. When the HV output is started, there is no overshoot. The voltage rise time is adjustable via control commands or PC control software, which allows users to make slow voltage rise instead of instant voltage rise.

The programmable high-voltage DC power supplies are suitable for bench top applications or automated test system applications, such as: insulation breakdown testing, high voltage capacitor charging / reforming, high voltage inverter testing.
