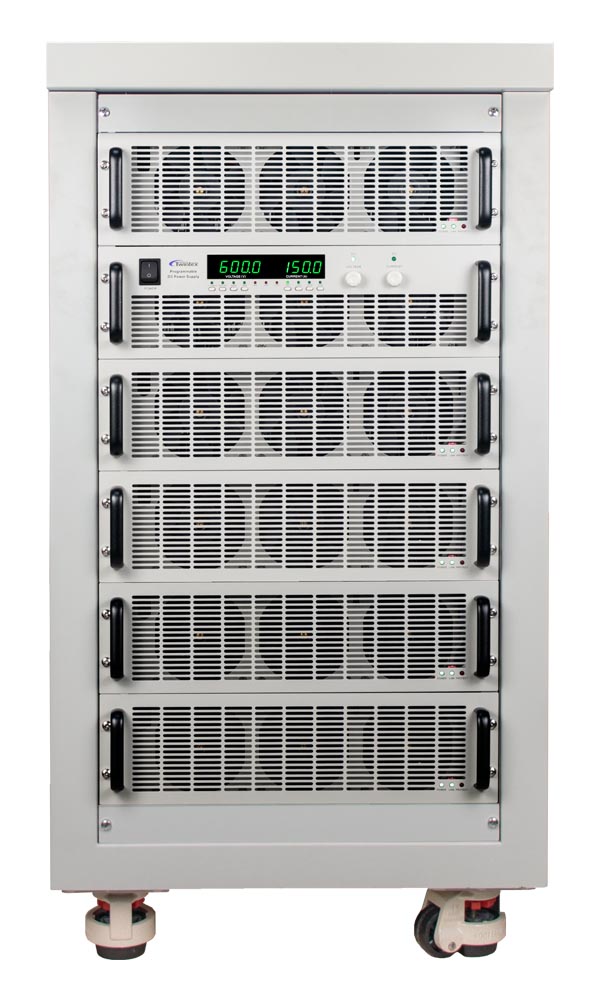

PCL 75kW Programmable High-Power DC Power Supply in 20U Cabinet Provide Output Up to 2000V & Current 1875A
PCL 75kW Programmable High-Power DC Power Supply in 20U Cabinet Provide Output Up to 2000V & Current 1875A
- 20U 75kW high-power programmable DC power supply
- Rated voltage from 40V 60V 300V to 1000V 1500V 2000V
- Ratings from 100V 750A to 1000V 75A, 1500V 50A and 2000V 37.5A
- Comprehensive customized solutions case by case
- Built into 20U cabinet
- 4 digits LED display for voltage and current
- Low ripple, high stability
- List mode function, Auto Run function, Remote sensing function
- No overshoot during startup
- Soft start by hardware, and adjustable voltage rise time by software
- Remote ON/OFF control
- Preset voltage and current
- Multiple protections: OVP, OTP, ACF and current limit protections
- RS232 & RS485, support ModBus-RTU commands
- Optional analog interface for control and feedback
- Optional LAN interface
Details
The PCL series 20U 75kW high-power programmable variable DC power supply provide variable output voltage up to 2000V and output current up to 1875A. Regular required output ranges to the 75kW high voltage DC power supply are 50V 1500A 100V 750A 300V 250A 500V 150A 1500V 50A and 2000V 37.5A. Other output can be customized case by case. The programmable DC power supply PCL 75kW series, the maximum rated voltage is from 40V to 2000V and the maximum rated current is from 37.5A to 1875A.
The PCL series are high power output Switching DC power supply with rated power from 1.2kW to 90KW. The PCL series adopts ZVZCS PWM technology, which greatly reduces switching consumption and therefore facilitates switching function with high efficiency and high stability. RS232 and RS485 communication interfaces are made as standard part for PCL series, providing multiple communication choices for digital control.
Hot models
- PCL100-750: 100V 750A 75KW 20U Rack Mount High Voltage High Current DC Power Supply
- PCL300-250: 300V 250A 75KW 20U Rack Mount High Voltage High Current DC Power Supply
- PCL500-150: 500V 150A 75KW 20U Rack Mount High Power Programmable DC Power Supply
- PCL1000V 75A: 1000V 75A 75KW 20U Rack Mount High Voltage Current DC Power Supply
- PCL1500-50: 1500V 50A 75KW 20U Rack Mount High Voltage DC Power Supply
- PCL2000-37: 2000V 37.5A 75KW 20U Rack Mount High Voltage DC Power Supply
