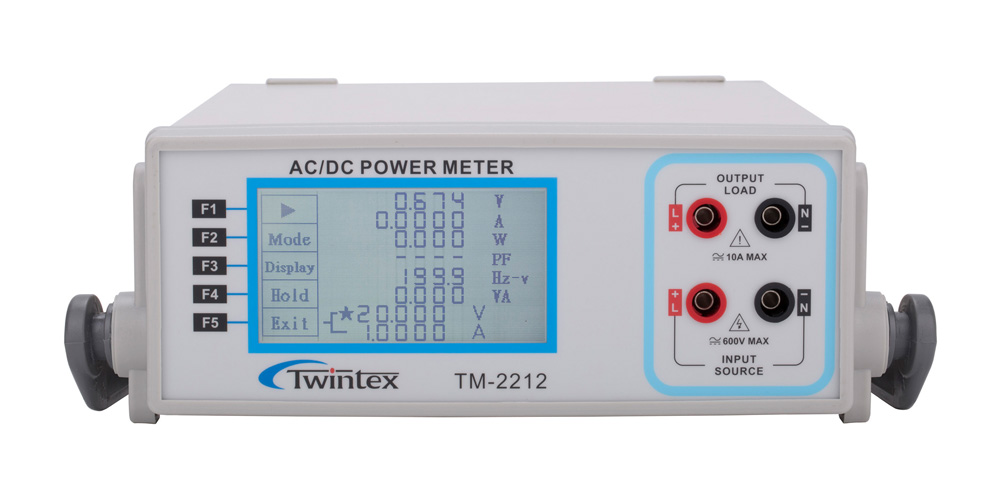

TM-2212 Bench Type AC DC True RMS Digital Power Meter 1000V 50App 50kW

TM-2212 Bench Type AC DC True RMS Digital Power Meter 1000V 50App 50kW

Bench type AC/DC digital power meter
Measurements: V/A/W/VA/VAR/PF/Hz/CF
Large screen LCD display, 4 or 6 parameters displayed simultaneously
True RMS V, A, W
Auto calibration via computer
Data Hold / Range Hold function
High immunity to external noise
CT ratio(1~9999)

Details

TM-2212 is a bench type AC/DC digital power meter with 16-bit CPU microprocessor, equipped with multifunction of full digitized measurement, calibration and output. The microprocessor has the advantage of high-speed sampling and calculation function to accurately measure the distortion signal of wave form. Except for its essential measurement on AC/DC voltage, AC/DC current, AC/DC watt, power factor, frequency and Crest Factor, the power meter also provides additional features of PT/CT ratio setting, display value holding, range selecting, auto-ranging, etc.

In order for an even more efficient and convenient communication, the power meter is available with the standard RS232 and RS485 interfaces. It is a low-cost, easy-to-use power measuring instrument.
