600W Lab Grade DC Regulated Linear Power Supply 30V 20A and 60V 10A

Categories

600W Lab Grade DC Regulated Linear Power Supply 30V 20A and 60V 10A

  • Lab Grade DC Regulated Linear Power Supply 30V 20A and 60V 10A
  • Constant voltage and constant current operations
  • Auto CV and CC switch
  • Output ON/OFF control
  • Preset function, setting of voltage and current with output open circuit
  • High efficiency, light and compact design
  • High power density
  • Over load and reverse polarity protections
Get a Quote
Download PDF

Details

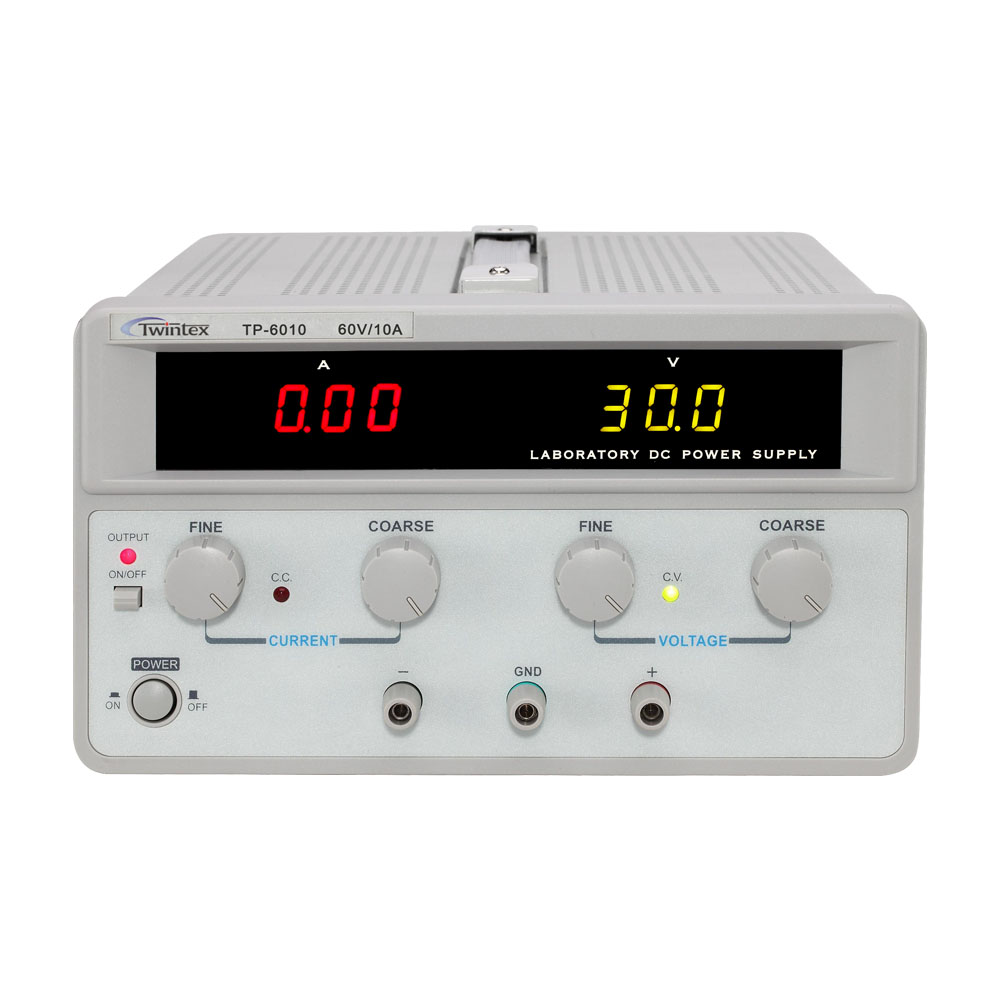

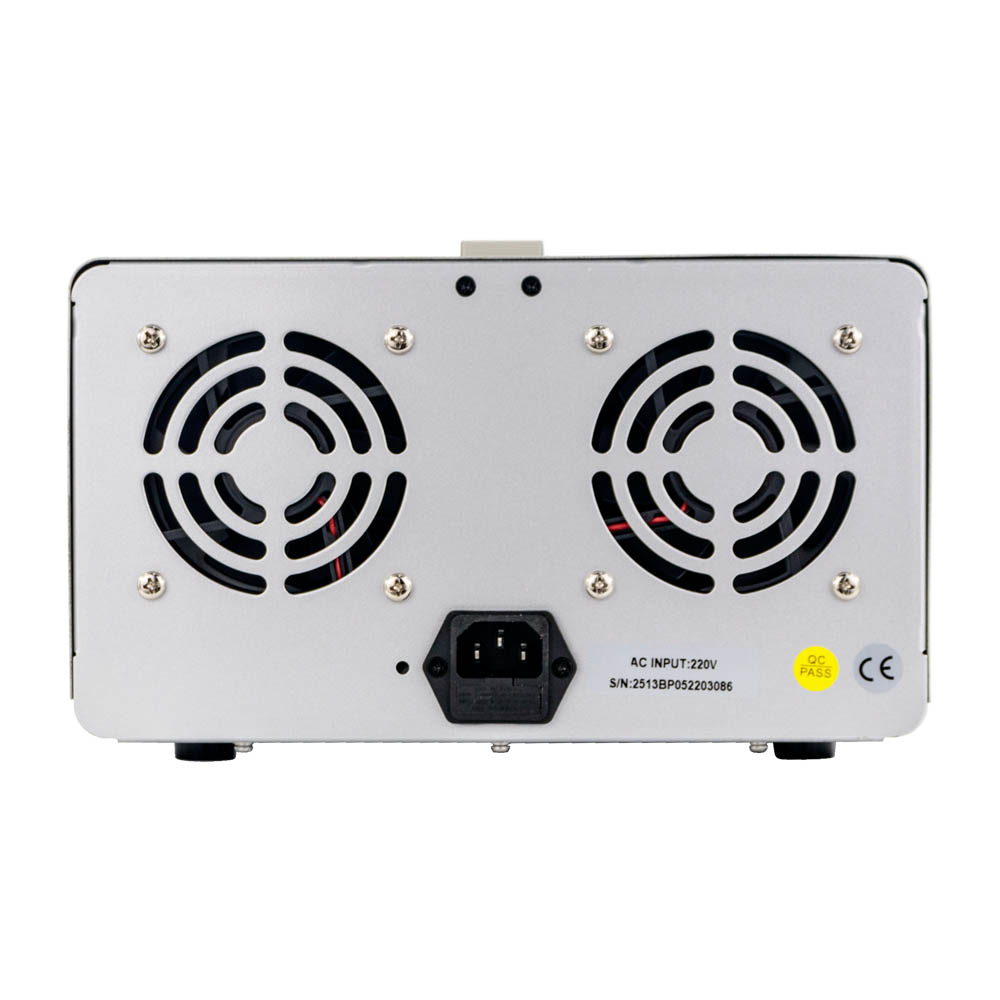

TP-3020 and TP-6010 are lab grade DC regulated linear power supply with single output, rated 0-30V 0-20A and 0-60V 0-10A. It is designed with high regulation 0.01%, low ripple 3mVrms, and fast recovery time 100uS. The output voltage and current can be precisely preset, no need to short circuit the output terminals. The DC ON/OFF is controlled via the output ON/OFF switch. The DC regulated linear power supply can be used for powering operational amplifier, push pull stages, logic circuit and definition systems.

Selection Guide

Model TP-3010 TP-6005 TP-3020 TP-6010
Output voltage 0~30V 0~60V 0~30V 0~60V
Output current 0~10A 0~5A 0~20A 0~10A
Voltmeter 3 digits LED 3 digits LED 3 digits LED 3 digits LED
Ammeter 3 digits LED 3 digits LED 3 digits LED 3 digits LED
Resolution 100mV/10mA 100mV/10mA 100mV/100mA 100mV/10mA
Preset V&I √ √
Output ON/OFF √ √ √ √
Dimension 255Wx155Hx370D mm 255Wx155Hx330D mm
Weight 10kg 10kg 14kg 14kg
