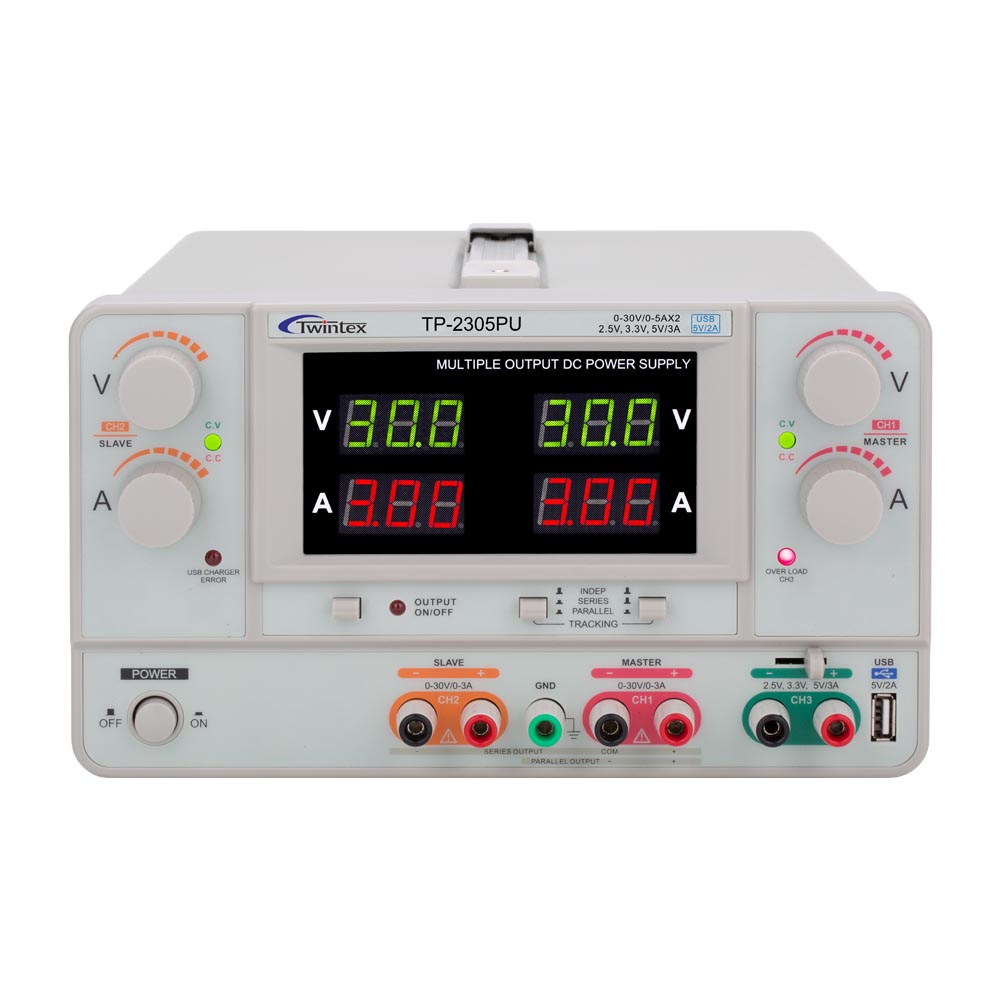

TP2000PU Series 30V 3A, 30V 5A, 50V 3A Laboratory DC Regulated Triple Output Power Supply
TP2000PU Series 30V 3A, 30V 5A, 50V 3A Laboratory DC Regulated Triple Output Power Supply
The TP2000PU series are multiple output Linear DC Power Supply, using toroidal transformer. The linear power supply works in constant voltage and constant current mode. The output ripple is very low, 1mVrms and 3mArms. There are triple output channels on front panel of the power supply: Dual DC output 30V 3A or 30V 5A, adjustable power supply, one fixed DC output 2.5V 3.3V 5V 3A power supply. The laboratory linear DC power supply can be used as student power supply, laboratory power supply and electronic power supply in factory.
GET A QUOTE
DATASHEET DOWNLOAD
Twintex_Datasheet_DC_Power_Supply_TP-2000PU_201907.pdfFeatures
- Two independent adjustable outputs 0~30V/0~3A x2, 0~30V/5A x2, 0~50V/0~3A x2
- Fixed 2.5V/3.3V/5V/3A binding post output, and fixed 5V/2A USB output
- Constant voltage and constant current operations, auto CV and CC switch
- Low ripple and noise, low temperature drift
- Auto Series and Parallel tracking operations
- Output ON/OFF control
- Preset function, setting of voltage and current with output open circuit (TP-2303PU/2305PU/2503PU)
- High efficiency, high power density
- Over load and reverse polarity protections
- Dual-color four digital panel meters
- SMD PCB, high quality, high reliability
