PPA Series 100W Auto Ranging High Precision Programmable DC Power Supply With 4 Digits LCD Display

PPA Series 100W Auto Ranging High Precision Programmable DC Power Supply With 4 Digits LCD Display

Auto range (wide range) output, power ratio 2~4
MINI size, high power density

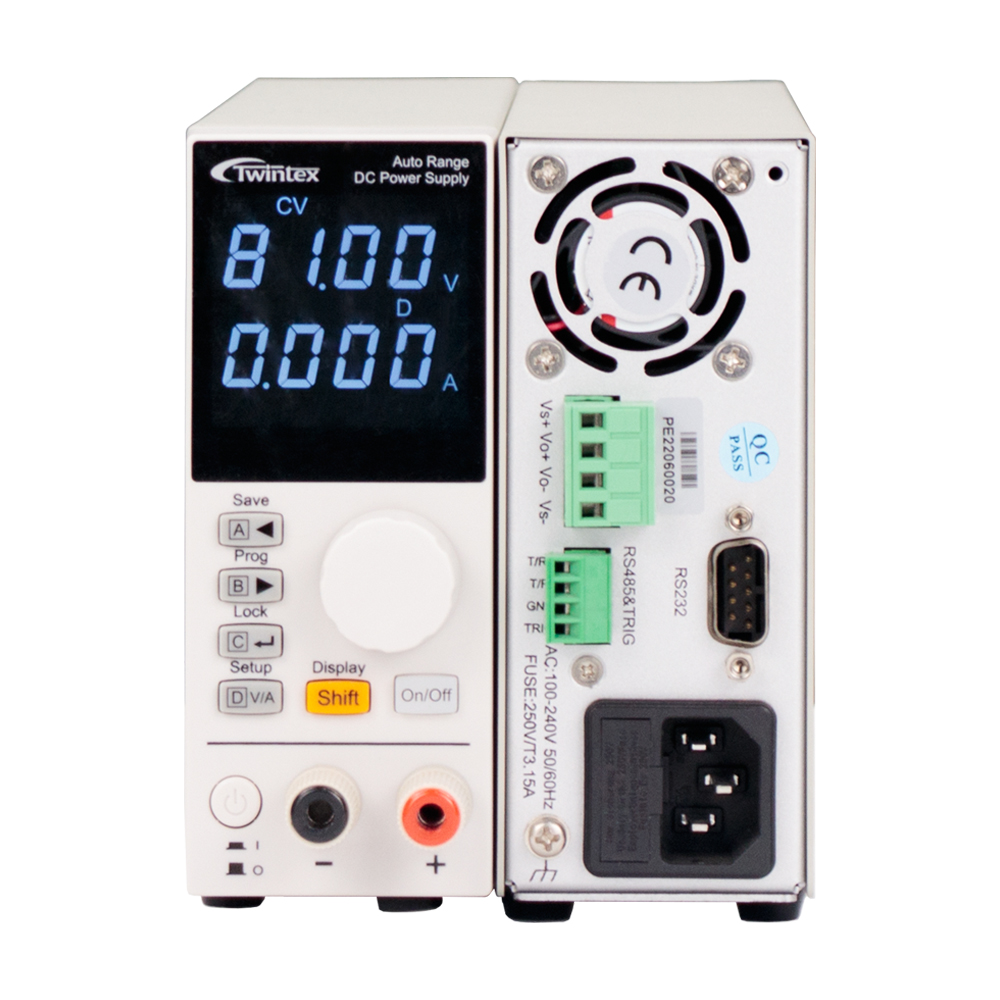

4 digits LCD display for voltage, current, time and power
Adjustable constant power output (set by computer)
List mode function (set by computer)
Ramp output (set by computer)
Trigger function
Remote sensing function

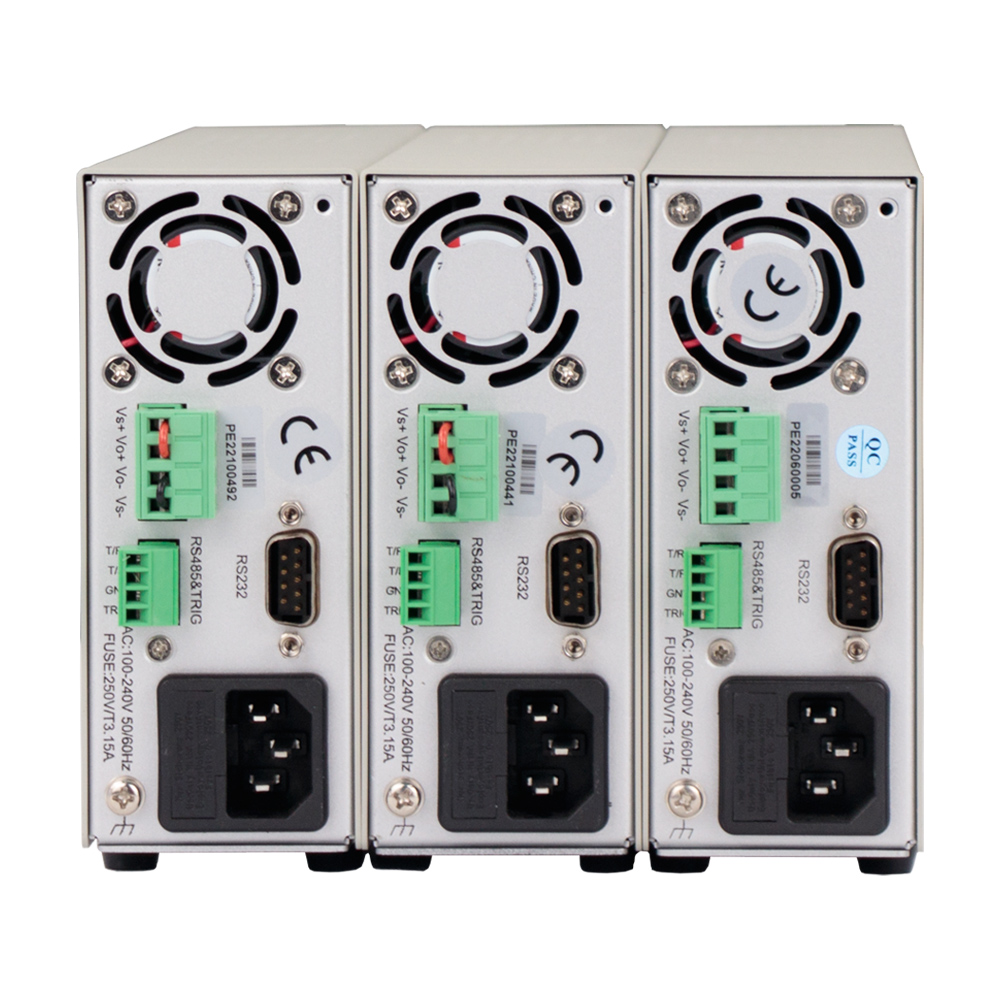

Output terminals on front panel and rear panel
100×4 memories for voltage, current and timer setups (100 groups, 4 memories in each group)
Multiple protections: OVP, OCP, OTP
Standard interface: RS232 & RS485, SCPI & ModBus-RTU commands
Optional interface: USB, LAN
Data record software

Get a Quote

Download PDF

Details

PPA100 series, a single channel programmable DC power supplies with high power density design, have wide range of voltage/current combinations. Within rated power, the auto-range power supply allows wider voltage and current output than a conventional power supply.The auto-range DC power supply is rated power 100W, maximum rated voltage available with 40V, 80Vand 160V, maximum rated current available with 2.5A, 5A and 10A.For wide range voltage and current applications, one auto-range DC power supply can be used to test the input of both low voltage/high current and high voltage/low current DUTs. The auto-range DC power supply can be used in ATE system to replace multiple DC power suppliers, saving cost and space.
