TP-2000K Series Multi Channel Linear DC Power Supply 30V 3A and 30V 5A

  • 30V 3A and 30V 5A multi channel linear DC power supply
  • Two independent adjustable channels 0~30V
  • One fixed channel 5V 3A
  • Output ON/OFF control
  • Constant voltage and constant current operations, auto CV and CC switch
  • Low ripple and noise, low temperature drift
  • Auto Series and Parallel tracking operations
  • High efficiency, high power density
  • Over load and reverse polarity protections
  • Dual-color four digital panel meters
Get a Quote
Download PDF

Details

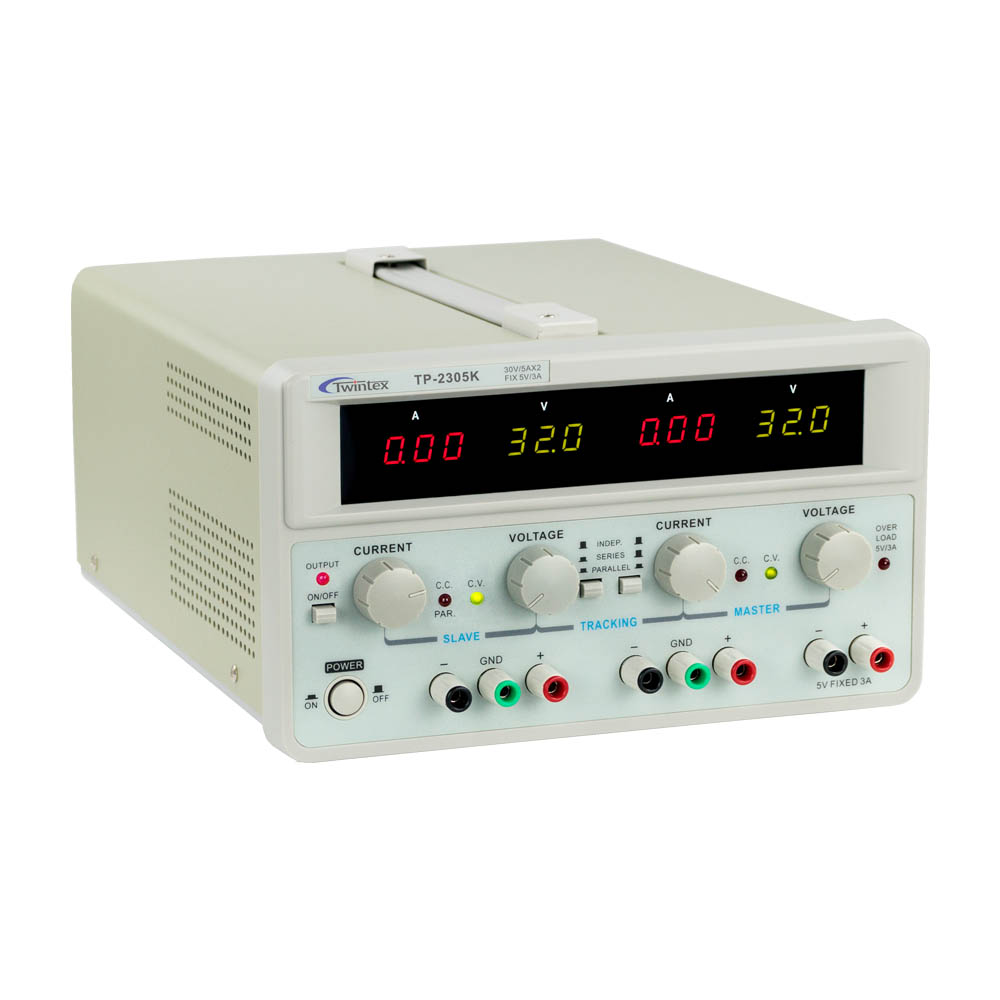

TP-2303K and TP-2305K are 30V 3A and 30V 5A multi channel linear DC power supplies, intended for bench-top applications in laboratory and industry. The multi channel power supply provides two adjustable channels 0~30V and one fixed channel 5V at 3A. The two adjustable channels can be operated series and parallel tracking modes. The output ON/OFF control allows users to control DC output conveniently during operation. The multi channel power supply are widely used in applications of powering operational amplifier, push pull stages, logic circuit and definition systems.

Selection Guide

Model TP-2303E

TP-2305E

 TP-2303C

TP-2305C

 TP-2303K

TP-2305K

 TP-2303

TP-2305

 TP-2303TK TP-2305TK
Output voltage 0~30V x2 0~30V x2 0~30V x2 0~30V x2 0~30V x2
Output current 0~3A x2

0~5A x2

 0~3A x2

0~5A x2

 0~3A x2

0~5A x2

 0~3A x2

0~5A x2

 0~3A x2

0~5A x2
Fixed output 5V/3A 5V/3A 5V/3A 5V/3A
Preset V&I √
Output ON/OFF √ √ √
Tracking operation √ √ √ √ √
Dimension (WxHxD) 255x155x330mm 255x155x370mm
Weight 7kg/9kg 7kg/9kg 7kg/9kg 8kg/10kg 8kg/10kg
