TFG3200E Series Dual Channel DDS Function Generator 5MHz 10MHz 15MHz 20MHz
TFG3200E Series Dual Channel DDS Function Generator 5MHz 10MHz 15MHz 20MHz
- Max. output frequency 5MHz/10MHz/15MHz/20MHz
- 2 output channels
- Mono LCD display
- Direct Digital Synthesis technology (DDS)
- Min. output amplitude 1mV (50Ω) with good stability
- Sampling rate 100MSa/s, vertical resolution 8 bits, waveform length 1024 points
- 32 built-in waveforms
- 40 sets save & recall for panel settings
- Modulations: FM, FSK, ASK, PSK
- Frequency sweep, amplitude sweep, burst and TTL output functions
- Over voltage, over current, short circuit and reverse voltage protections
- High speed rotary dial and keypad input
- Standard 200MHz external frequency counter
- Optional RS-232 interface for PC remote control
- Optional power amplifier
Details

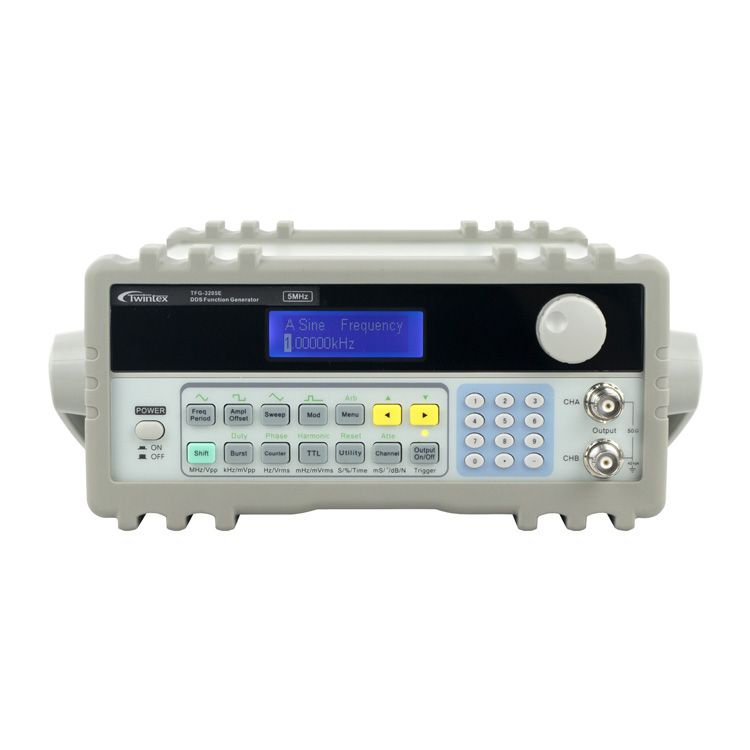

TFG-3205E, TFG-2610E, TFG-3215E and TFG-3220E are dual channel function generators with maximum frequency of 5MHz, 10MHz, 15MHz and 20MHz, based on Direct Digital Synthesis (DDS) technology. The dual channel function generators are lab grade instruments that are typically used for educational purpose in schools and training center, specifically electrical and electronic labs. Students can use the function generator to generate standard waveforms like sine, square, and triangle waves to test simple circuits. In total there are 32 types of waveforms selectable from the function generator. The function generator also includes a frequency counter that can measure frequency of external signals, max range 200MHz.
Hot models
- TFG-3205E: 5MHz DDS Function Generator
- TFG-3210E: 10MHz DDS Function Generator
- TFG-3215E: 15MHz DDS Function Generator
- TFG-3220E: 20MHz DDS Function Generator
