PCL 20kW 30kW 6U Rack Mount High Voltage and High Current Adjustable Programmable DC Power Supply
PCL 20kW 30kW 6U Rack Mount High Voltage and High Current Adjustable Programmable DC Power Supply
The PCL series are high power output Switching DC power supply with rated power from 1.2kW to 15kW. The PCL series adopts ZVZCS PWM technology, which greatly reduces switching consumption and therefore facilitates switching function with high efficiency and high stability.The PCL series are built into a 2U/3U/12U 19-inch standard chassis. The maximum rated voltage is from 6V to 1000V and the maximum rated current is from 2A to 2000A. RS232 and RS485 communication interfaces are made as standard part for PCL series, providing multiple communication choices for digital control.
Details
Features
- Rated power 20kW 30kW each device
- Rated voltage from 10V 20V 30V 60V to 1000V 1500V 2000V (20kW)
- Rated voltage from 30V 60V to 1000V 1500V 2000V (30kW)
- Ratings from 30V 1000A & 300V 100A to 1000V 30A, 1500V 20A and 2000V 15A (30kW)
- Ratings from 10V 2000A & 20V 1000A to 1000V 20A and 2000V 10A (20kW)
- Comprehensive customized solutions case by case
- 6U rack mount cabinet design
- 4 digits LED display for voltage and current
- Low ripple, high stability
- List mode function, Auto Run function, Remote sensing function
- No overshoot during startup
- Soft start by hardware, and adjustable voltage rise time by software
- Remote ON/OFF control
- Preset voltage and current
- Multiple protections: OVP, OTP, ACF and current limit protections
- RS232 & RS485, support ModBus-RTU commands
- Optional analog interface for control and feedback
- Optional LAN interface
Hot models
- PCL20-1000: 20V 1000A 20KW 6U Rack Mount High Voltage and High Current DC Power Supply
- PCL100-200: 100V 200A 20KW 6U Rack Mount High Voltage and High Current DC Power Supply
- PCL1000-20: 1000V 20A 20KW 6U Rack Mount High Voltage and High Current DC Power Supply
- PCL30-1000: 30V 1000A 30KW 6U Rack Mount High Voltage and High Current DC Power Supply
- PCL50-600: 50V 600A 30KW 6U Rack Mount High Voltage and High Current DC Power Supply

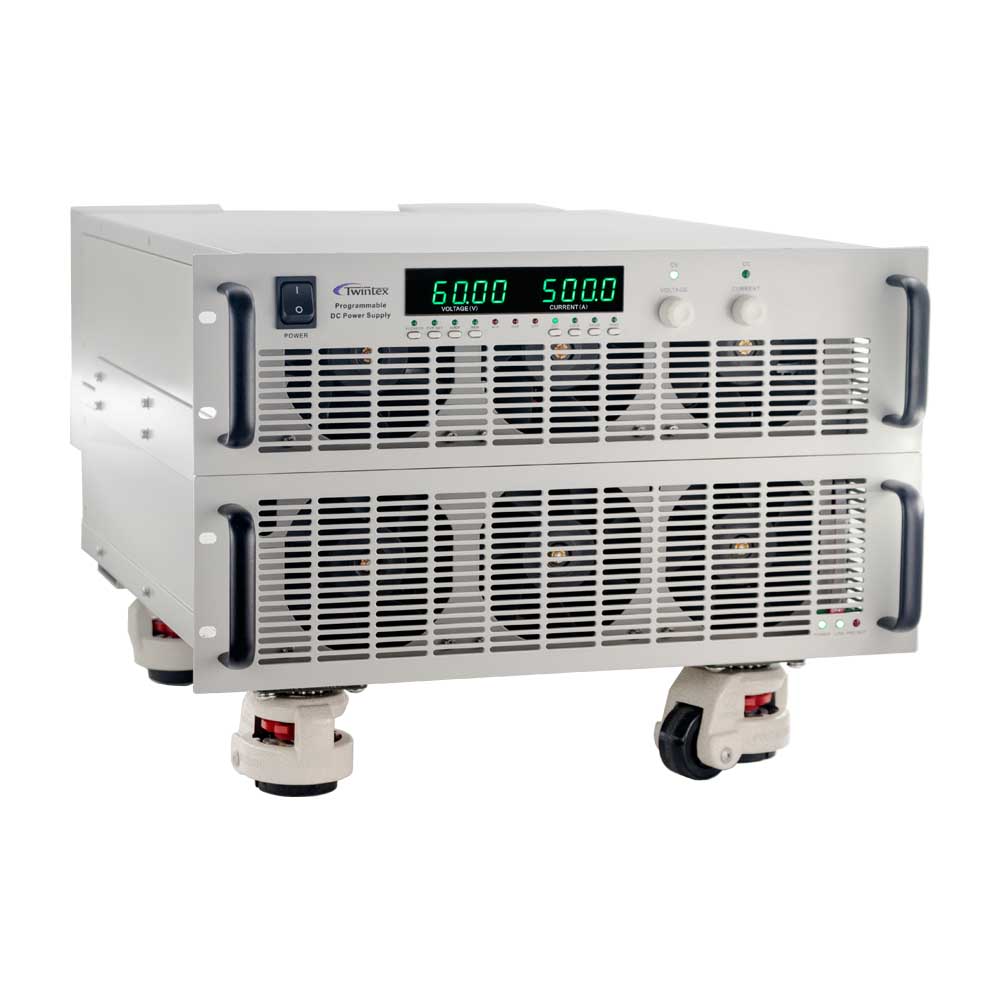

- PCL60-500: 60V 500A 30KW 6U Rack Mount High Voltage and High Current DC Power Supply
- PCL300-100: 300V 100A 30KW 6U Rack Mount High Voltage and High Current DC Power Supply
- PCL1000-30: 1000V 30A 30KW 6U Rack Mount High Voltage and High Current DC Power Supply
