PCH 4kW 4000V 1A DC High Voltage Power Source 1000V 4A 2000V 2A to 8kV 12kV

  • 4kW DC High Voltage Power Source 1000V 4A 2000V 2A to 8kV 12kV
  • Typical ratings: 1000V 4A, 2000V 2A, 4000V 1A, 8kV 0.5A and 10kV 0.4A
  • Positive polarity 1000V to 12kV
  • Optional negative polarity -1000V to -12kV
  • Low ripple 0.1%FS

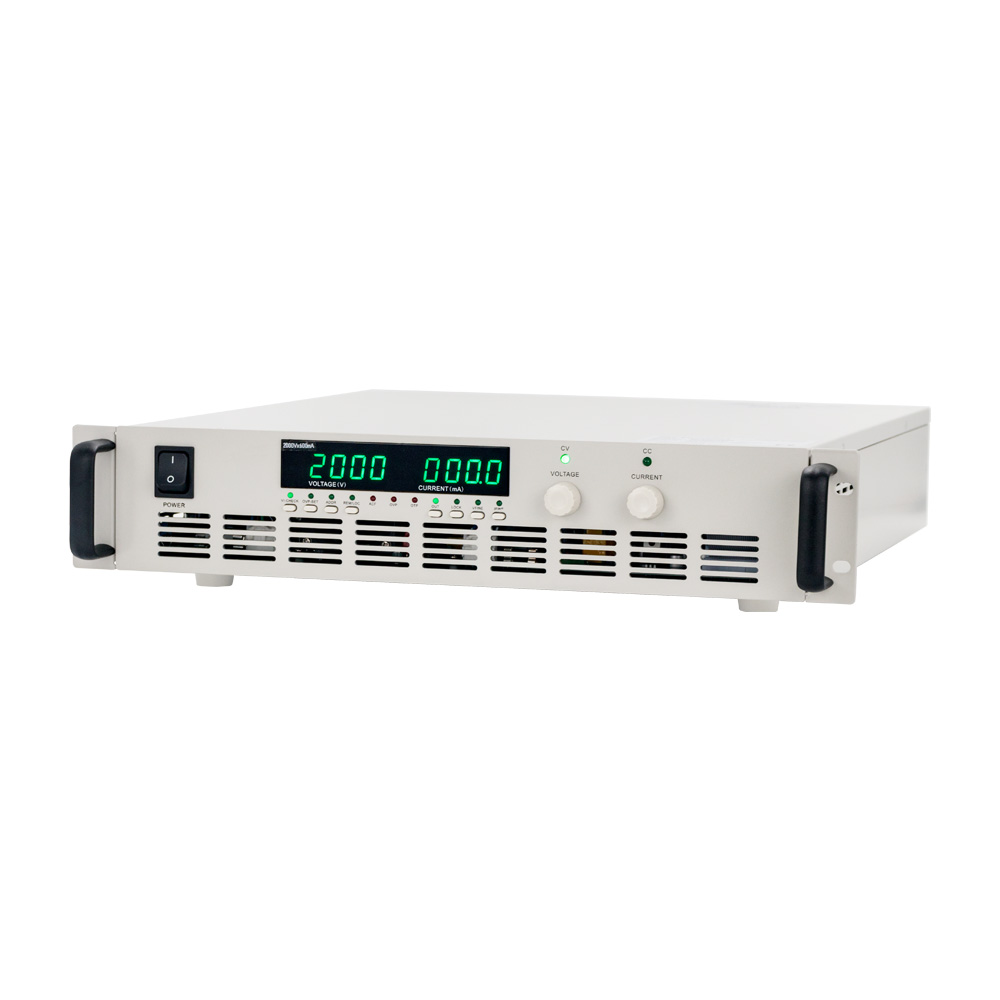

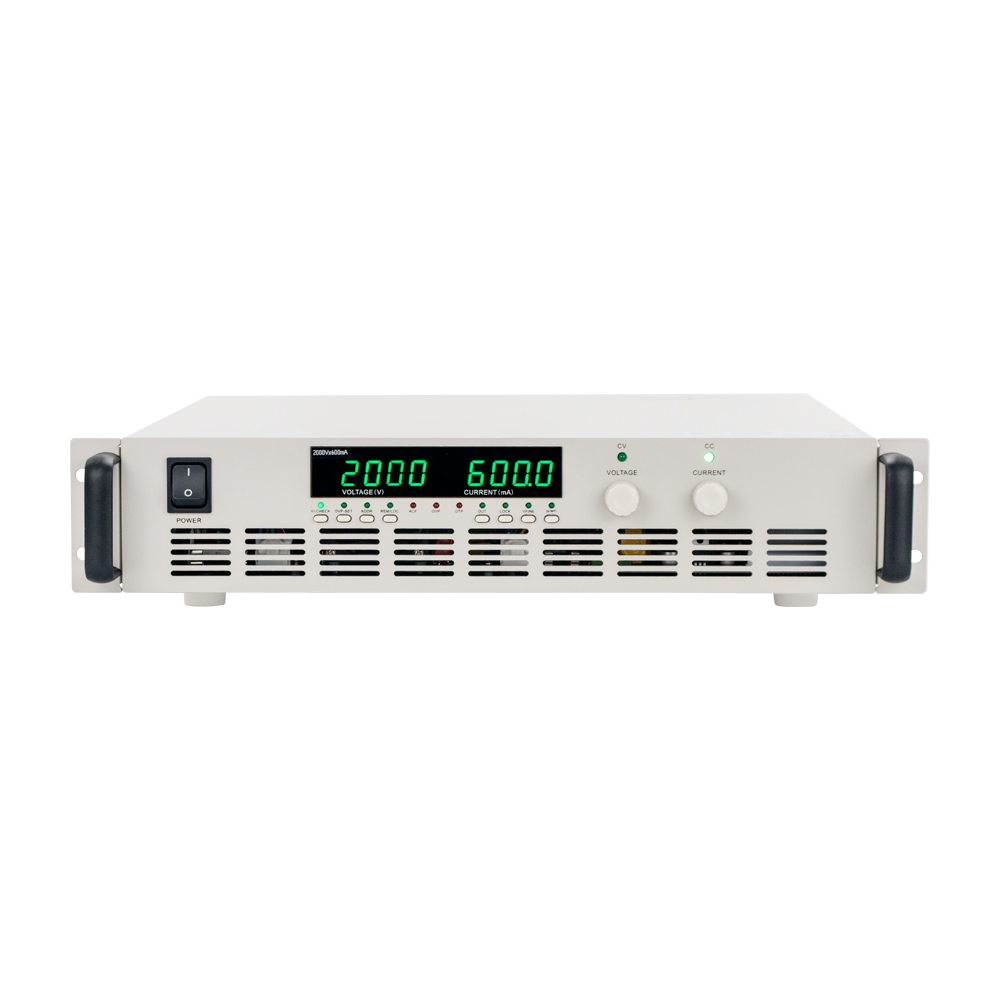

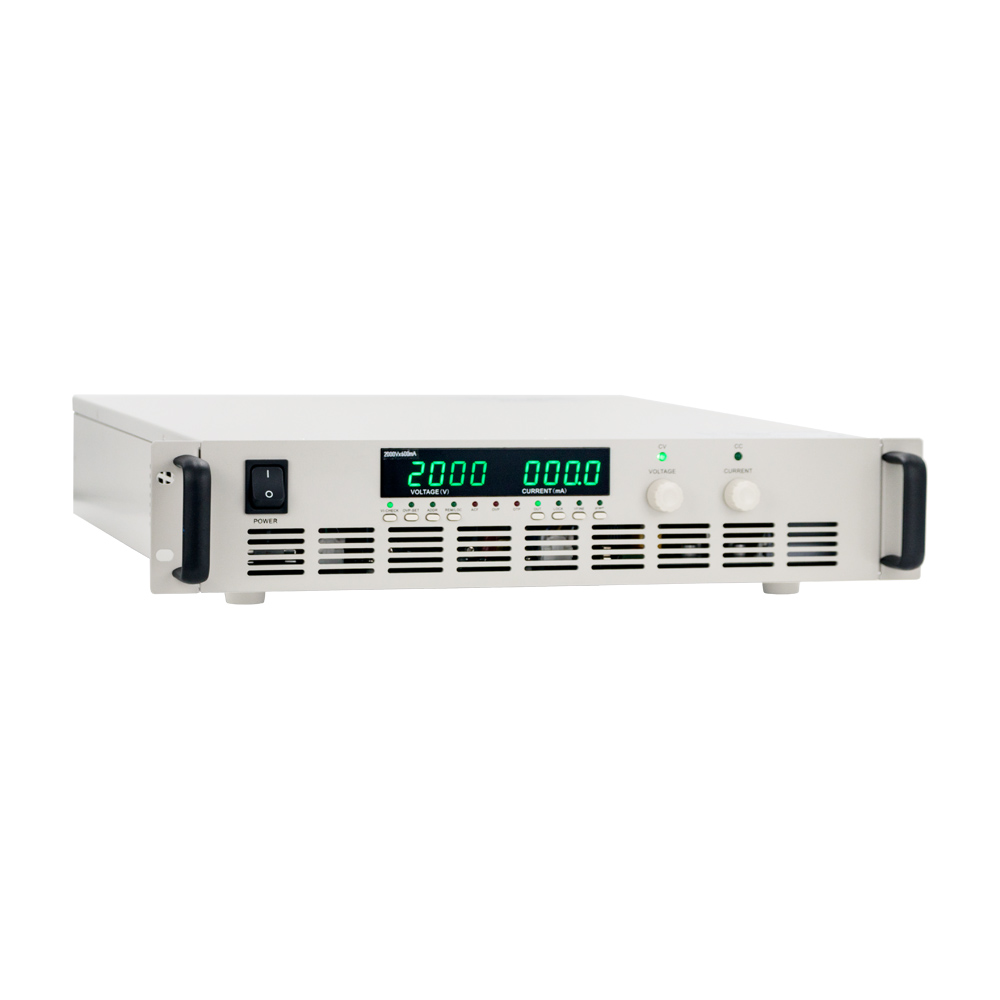

  • High power density in 2U full rack design
  • List mode function, Auto Run function
  • No overshoot during startup
  • Soft start by hardware, and adjustable voltage rise time by software
  • Preset voltage and current
  • Remote ON/OFF control
  • Multiple protections: OVP, OTP, ACF and current limit protections

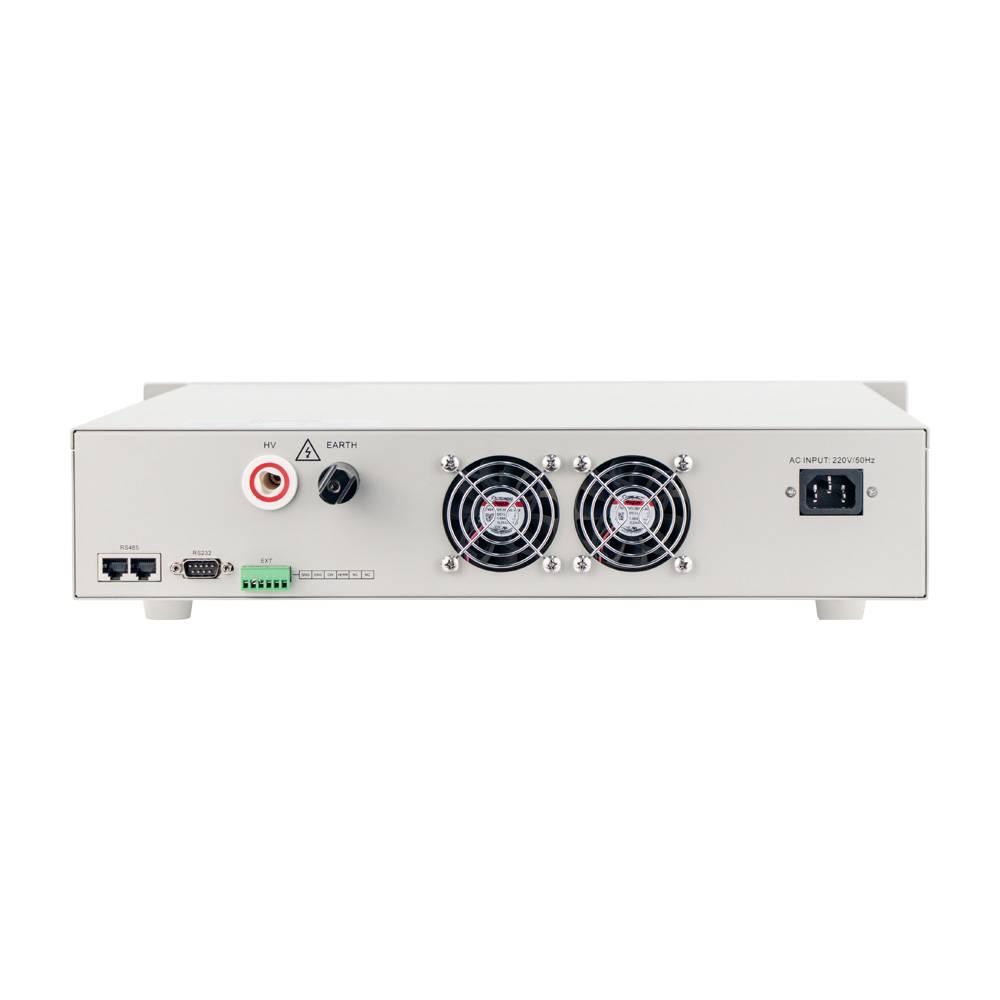

  • Standard interface: RS232 & RS485, support ModBus-RTU commands
  • Data record and export through PC control software
  • Hot keys for data save and recall on PC control software
  • Optional analog interface for control and feedback; LAN interface
Get a Quote
Download PDF

Details

Twintex PCH 4kW series DC high voltage power sources are available in positive or negative polarities, with voltage ratings from 1000V to 12kV in 12 different standard configurations. Custom configuration can be finalized according to specific test needs.

Utilizing ZVZCS PWM technology, the PCH 4kW DC high voltage power sources feature high power density and high reliability. Its functions and features are accessible and configurable via front panel operation or RS232 & RS485 remote control.

Built in 2U rack mount, it is convenient to integrate the 4kW DC high voltage power sources to ATE system for semiconductor processing, capacitor charging, high power RF transmitter testing, etc.

Hot models:

PCH4000-10H: 1000V 4A DC High Voltage Power Source

PCH4000-20H: 2000V 2A DC High Voltage Power Source

PCH4000-40H: 4000V 1A DC High Voltage Power Source

PCH4000-80H: 8kV 0.5A DC High Voltage Power Source

PCH4000-100H: 10kV 0.4A DC High Voltage Power Source

Programmable High Voltage DC Power Supply 4kW 5kW


Model		 Rated Output   Model Rated Output
V A W V A W
PCH4000-10H 0~1000V 0~4000mA 4kW PCH5000-10H 0~1000V 0~5000mA 5kW
PCH4000-10HN -200~ -1000V 0~4000mA 4kW PCH5000-10HN -200~ -1000V 0~5000mA 5kW
PCH4000-12H 0~1200V 0~3333mA 4kW PCH5000-12H 0~1200V 0~4166mA 5kW
PCH4000-12HN -240~ -1200V 0~3333mA 4kW PCH5000-12HN -240~ -1200V 0~4166mA 5kW
PCH4000-15H 0~1500V 0~2666mA 4kW PCH5000-15H 0~1500V 0~3333mA 5kW
PCH4000-15HN -300~-1500V 0~2666mA 4kW PCH5000-15HN -300~-1500V 0~3333mA 5kW
PCH4000-20H 0~2000V 0~2000mA 4kW PCH5000-20H 0~2000V 0~2500mA 5kW
PCH4000-20HN -400~ -2000V 0~2000mA 4kW PCH5000-20HN -400~ -2000V 0~2500mA 5kW
PCH4000-30H 400~3000V 0~1333mA 4kW PCH5000-30H 400~3000V 0~1666mA 5kW
PCH4000-30HN -600~ -3000V 0~1333mA 4kW PCH5000-30HN -600~ -3000V 0~1666mA 5kW
PCH4000-40H 550~4000V 0~1000mA 4kW PCH5000-40H 550~4000V 0~1250mA 5kW
PCH4000-40HN -800~ -4000V 0~1000mA 4kW PCH5000-40HN -800~ -4000V 0~1250mA 5kW
PCH4000-50H 700~5000V 0~800mA 4kW PCH5000-50H 700~5000V 0~1000mA 5kW
PCH4000-50HN -1000~ -5000V 0~800mA 4kW PCH5000-50HN -1000~ -5000V 0~1000mA 5kW
PCH4000-60H 800~6000V 0~666mA 4kW PCH5000-60H 800~6000V 0~833mA 5kW
PCH4000-60HN -1200~ -6000V 0~666mA 4kW PCH5000-60HN -1200~ -6000V 0~833mA 5kW
PCH4000-80H 500~8000V 0~500mA 4kW PCH5000-80H 500~8000V 0~625mA 5kW
PCH4000-80HN -1600~ -8000V 0~500mA 4kW PCH5000-80HN -1600~ -8000V 0~625mA 5kW
PCH4000-100H 800~10000V 0~400mA 4kW PCH5000-100H 800~10000V 0~500mA 5kW
PCH4000-100HN -2000~ -10000V 0~400mA 4kW PCH5000-100HN -2000~ -10000V 0~500mA 5kW
PCH4000-120H 1000~12000V 0~333mA 4kW PCH5000-120H 1000~12000V 0~416mA 5kW
PCH4000-120HN -2400~ -12000V 0~333mA 4kW PCH5000-120HN -2400~ -12000V 0~416mA 5kW
Weight 14kg (2U), 19kg (3U)
Dimensions 482.6Wx88Hx533D mm (2U-L)
AC Input 3φ4W, 380V±10% 47~63Hz

1φ3W (L, N, PE), 220V±10% 47~63Hz (at request, cabinet size changed to 3U) (only for 1kV to 6kV models)
