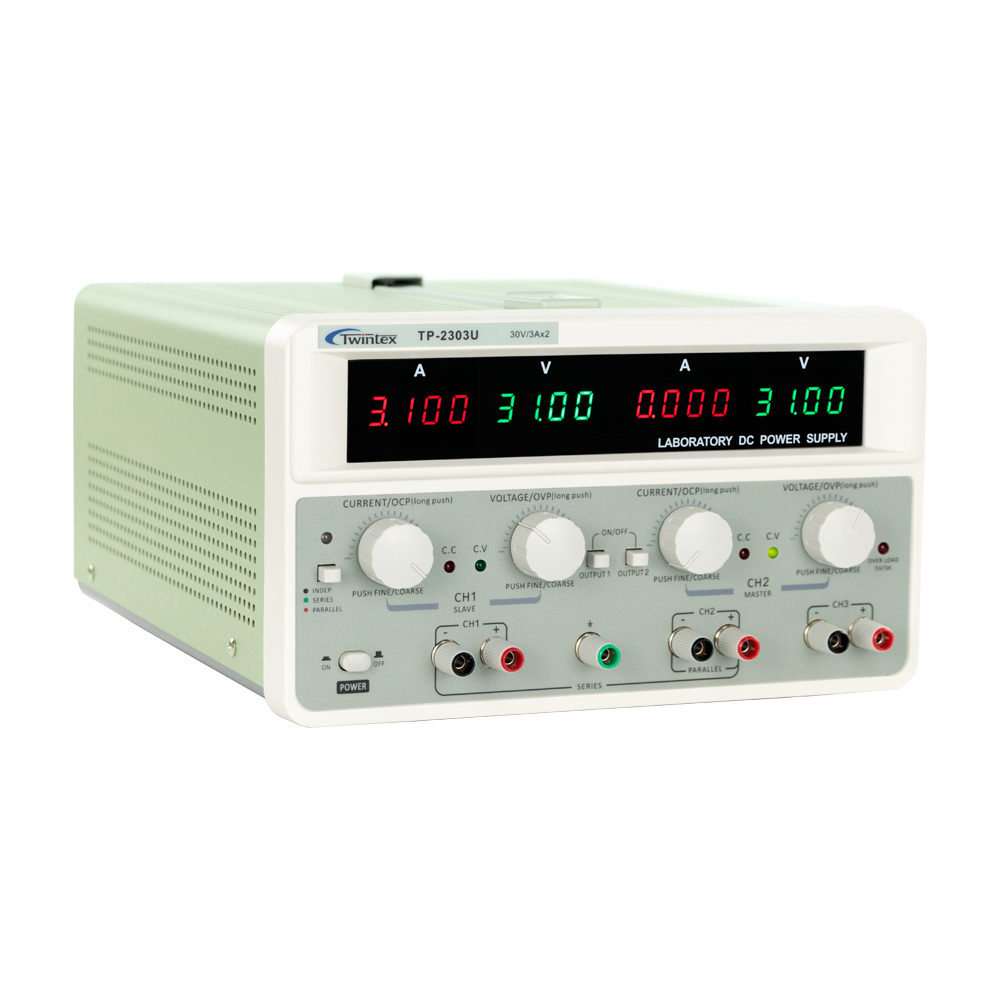

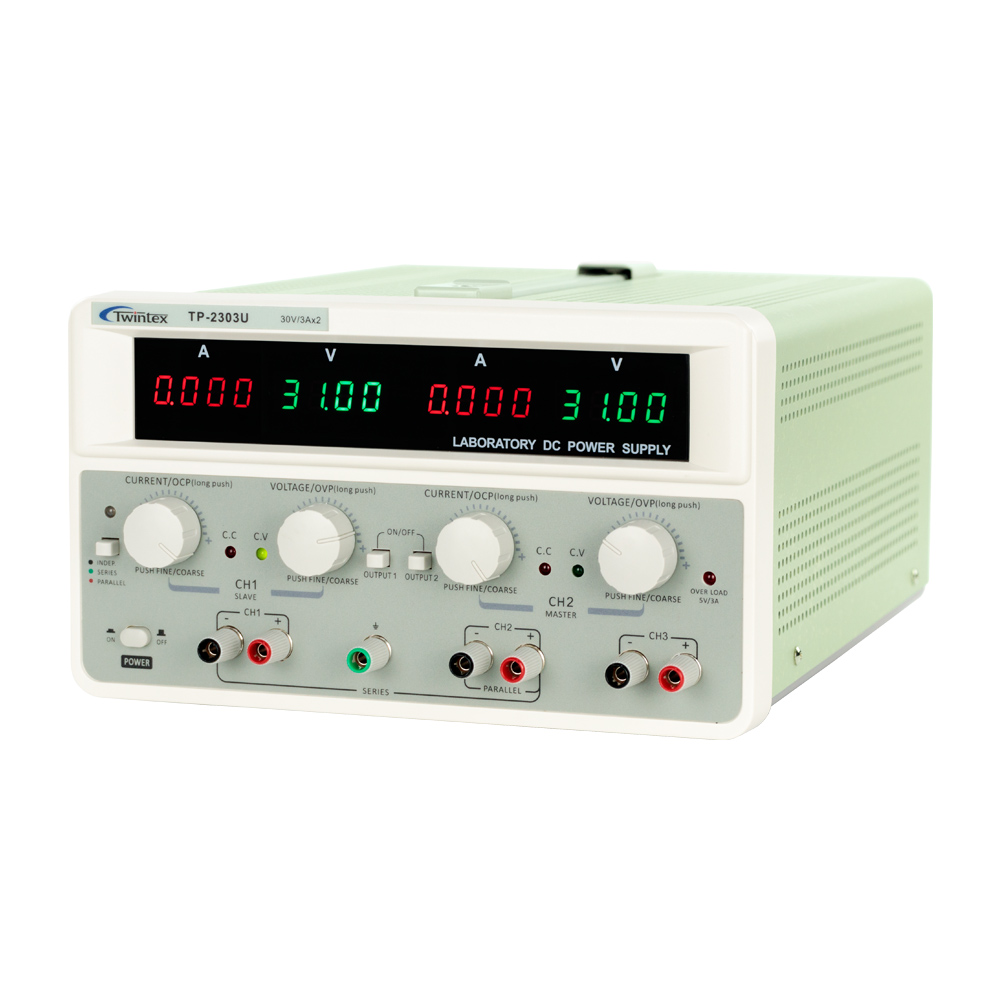

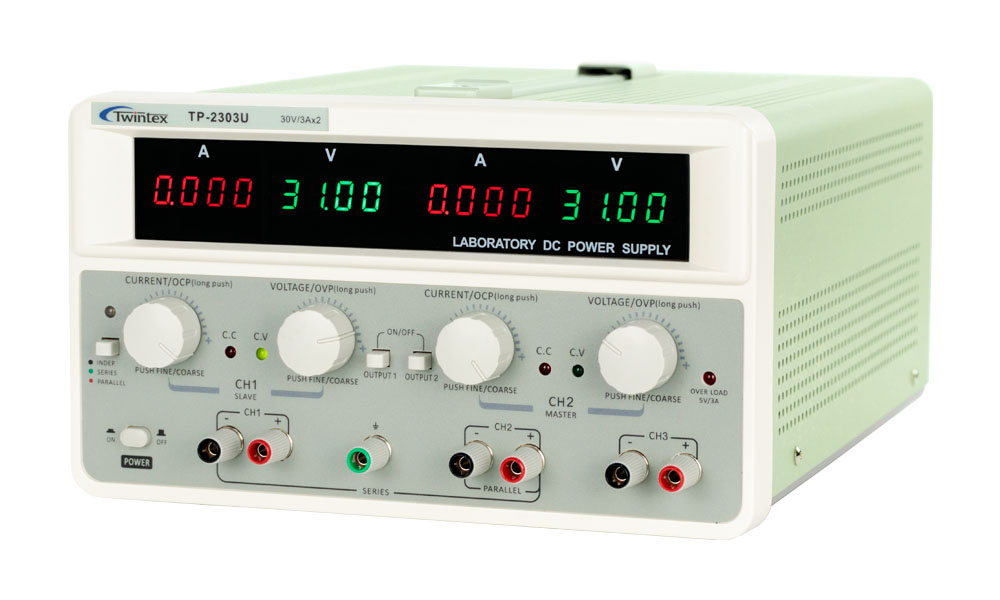

TP-2000U Series Adjustable Triple Channel Linear DC Power Supply 30V 3A, 30V 5A, 60V 3A, 60V 5A

TP-2000U Series Adjustable Triple Channel Linear DC Power Supply 30V 3A, 30V 5A, 60V 3A, 60V 5A

Adjustable triple channel linear DC power supply
Two adjustable channel 0V 3A, 30V 5A, 60V 3A and 60V 5A
One fixed channel 5V 3A
Dual color 4 digits LED display, resolution 10mV 1mA
Encoder knob for coarse and fine V&I adjustment
Lock V&I adjustment to a certain range to avoid over-range adjustment
Preset voltage and preset current function
Low ripple and noise, low temperature drift
Auto Series and Parallel tracking operations
Independent output ON/OFF control for CH1 and CH2
OVP, OCP and reverse polarity protections

Get a Quote

Download PDF

Details

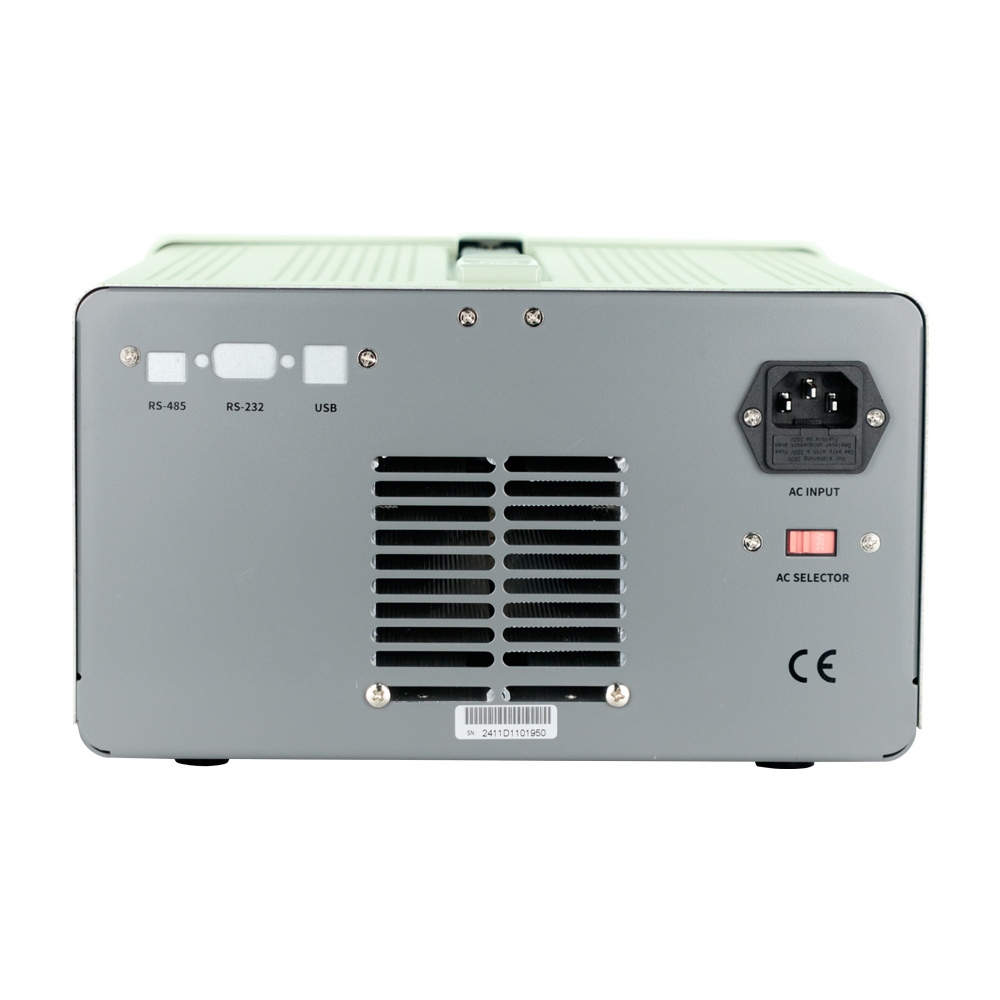

The TP-2000U series adjustable triple channel linear DC power supply family offers four models that cover the most typical voltage & current ratings for laboratory testing: 30V 3A, 30V 5A, 60V 3A and 60V 5A. Each has the option of RS-232 & USB interface for programming control by PC.

Output voltage and current are adjusted through encoder switch. Preset voltage and preset current function allows users to set output voltage and current without short circuit connection. Soft start circuit design minimized the overshoot current during output is on. Independent output ON/OFF switch for CH1 and CH2 channels provides flexible control. To avoid over-range adjustment, the voltage and current adjustment range can be set and locked to a certain range.

The adjustable triple channel linear DC power supply is an easy-to-use DC power source in the application of powering operational amplifier, push pull stages, logic circuit and definition systems.
