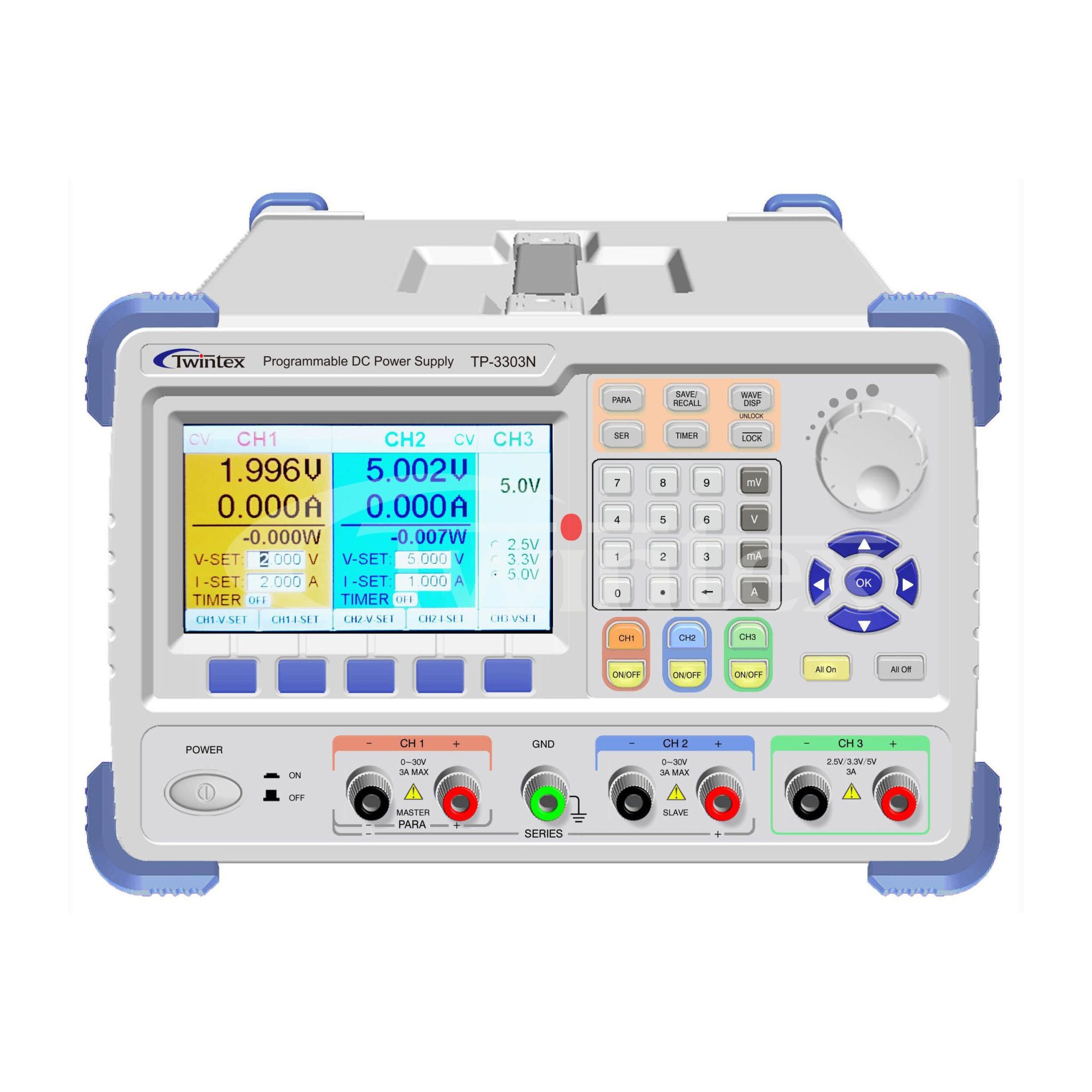

TP-3303N Programmable DC Power Supply 4.3-inch TFT LCD Display
TP-3303N Programmable DC Power Supply 4.3-inch TFT LCD Display
- Two independent adjustable outputs CH1/CH2: 0~32V, 0~3.2A
- One selectable output CH3: 2.5V, 3.3V, 5V/3.2A or 0-8V/5A at request
- 5 digits Voltage, 4 digits Current Display, Minimum Resolution: 1mV/1mA
- 4.3 inch TFT LCD display,
- Supports front panel timing output functions
- Constant voltage and constant current operations, auto CV and CC switch
- 100V/120V/220V/230V compatible design to meet the needs of different power grids
- 10 sets save & recall for panels settings, quick operation from panel
- Panel lock and output ON/OFF function
- Preset function, setting of voltage and current with output open circuit
- Auto Series and Parallel tracking operations
- Independent ON/OFF control for CH1/CH2/CH3
- Intelligent cooling fan control
- USB Device interface for remote programming, support SCPI commands
Details
The TP-3303N is multiple output programmable DC power supply with 4.3 inch TFT LCD display and USB interface, supports remote programming and has a real time waveform display. It uses digital programming for linear regulation to make accurate, stable and pure DC output with low noise. It has three independent outputs with independent on/off control: two with adjustable voltage level and one with fixed level selectable from 2.5V, 3.3V and 5V. It provides convenient operation and superior performance and can be used in production and R&D.
